Configure Cloudflare Gateway for PTC

Cloudflare Gateway Configuration Guide

Cloudflare Gateway is one of the SASE providers supported by Package Traffic Controller (PTC). Cloudflare Gateway TLS-inspects matching public registry traffic and redirects it to your Artifactory /package-reroute endpoint, so policy checks and logging happen in one governed path. Cloudflare owns the Gateway portal navigation and labels, which can vary by account and release. Use this as a workflow guide and confirm exact options in Cloudflare's documentation.

Complete Artifactory and workstation setup before activating Gateway policies. See Configure Artifactory for PTC and Configure Workstation for PTC. For the correct deployment sequence, see Deployment Sequence.

• Step 1 — Enable TLS Inspection
• Step 2 — Create a Firewall Policy for npm
• Step 3 — Create a Firewall Policy for PyPI
• Verify End-to-End

Prerequisites

Before you configure Cloudflare Gateway for PTC:

1. Create a Cloudflare One user with a valid email address under Team & Resources > Users (URL path: /one/team-resources/users).
2. Install the Cloudflare One Client on developer workstations. Download from Cloudflare One Client download.
3. Install the Cloudflare certificate on each workstation. The certificate name and installation path differ per operating system. Follow Cloudflare's guide for automated certificate deployment.
4. Configure Artifactory for PTC — complete Configure Artifactory for PTC before activating any Gateway redirect rules.

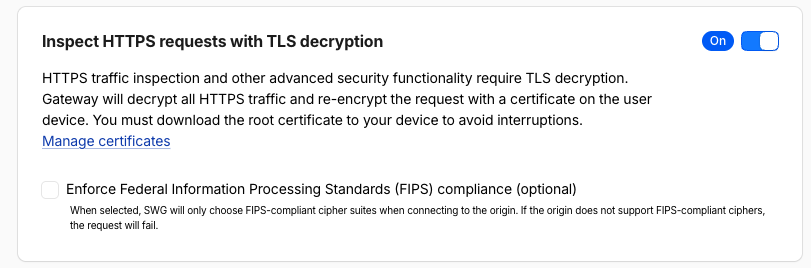

Step 1 — Enable TLS Inspection

Cloudflare Gateway must decrypt HTTPS traffic to apply redirect rules to package manager requests.

To enable TLS inspection:

Navigate to:

https://dash.cloudflare.com/<ACCOUNT_ID>/one/traffic-policies/traffic-settings

Where:

• <ACCOUNT_ID>: Your Cloudflare account ID, visible in the Cloudflare dashboard URL.

Enable Inspect HTTPS requests with TLS decryption.

Note

Make sure the required package registry traffic is not bypassed in your firewall policies, as some policies may bypass inspection by default.

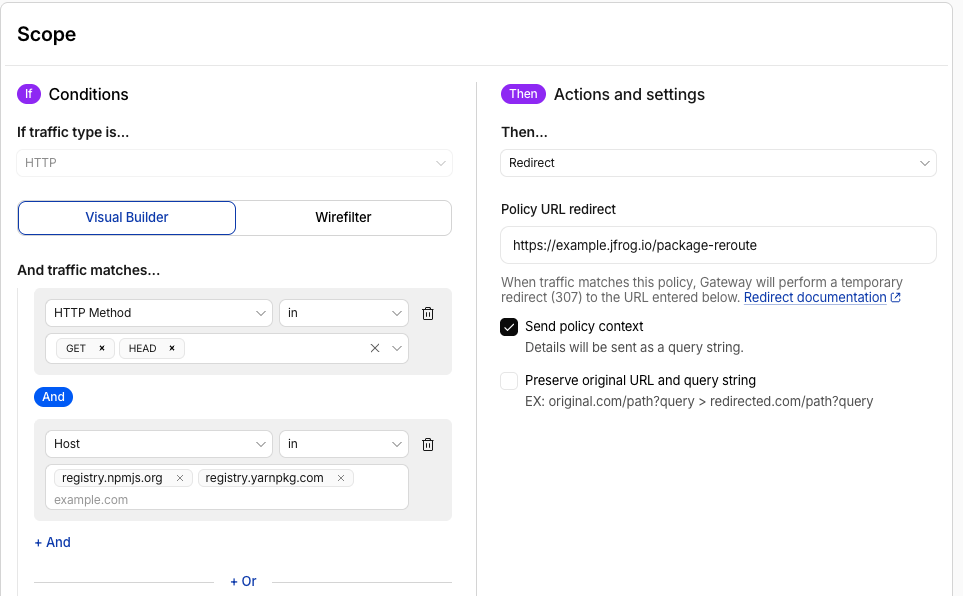

Step 2 — Create a Firewall Policy for npm

Create a Cloudflare Gateway firewall policy that intercepts npm registry traffic and redirects it to Artifactory.

To create the npm redirect policy:

Navigate to Traffic policies > Firewall policies > Add a policy and configure the following.

Conditions:

Important — exclude POST: Do not include POST in the HTTP Method condition. Commands like npm audit send POST requests to the registry. Including POST breaks those commands.

Actions and settings:

Enable Send policy context. Details are sent as a query string to Artifactory.

Step 3 — Create a Firewall Policy for PyPI

PyPI requires special handling because pypi.org hosts both the package index and the PyPI web UI. Redirecting all traffic to pypi.org would break the web UI. The policy must restrict the redirect to the package index URL paths only.

To create the PyPI redirect policy:

Navigate to Traffic policies > Firewall policies > Add a policy and configure the following. Use either Method 1 (Visual Builder) or Method 2 (Wirefilter). They are equivalent.

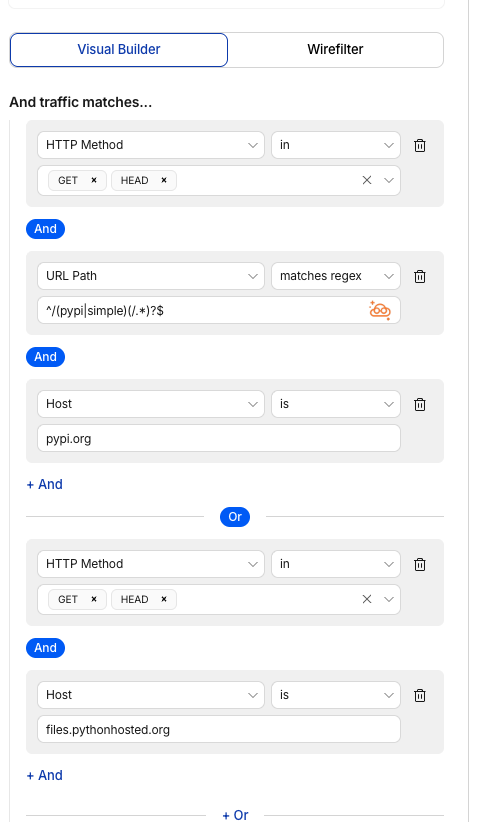

Method 1 — Visual Builder

Configure two condition groups connected by Or:

Group 1 — pypi.org package index paths:

Or

Group 2 — Python package files:

Method 2 — Wirefilter

Switch to the Wirefilter tab and enter:

(
  http.request.method in {"GET" "HEAD"} and
  http.request.uri.path matches "^/(pypi|simple)(/.*)?$" and
  http.request.host == "pypi.org"
)
or
(
  http.request.method in {"GET" "HEAD"} and
  http.request.host == "files.pythonhosted.org"
)

Actions and settings (for both methods):

Note

Hugging Face: If you redirect Hugging Face traffic through PTC, create a separate firewall policy for huggingface.co that uses GET only — do not include HEAD. Hugging Face requires GET-only routing across all SASE providers, including Cloudflare Gateway. See Docker, Hugging Face, and Other Types for Hugging Face setup details.

Verify End-to-End

After activating the Cloudflare Gateway redirect policies from Steps 2 and 3, make sure the Cloudflare One Client is running on the test workstation.

To verify end-to-end connectivity:

Run a test install with verbose logging:

npm install express --loglevel verbose

In the verbose output, look for GET requests going to your Artifactory hostname instead of registry.npmjs.org. You should see a line like:

npm http fetch GET 200 https://<YOUR_ARTIFACTORY_URL>/artifactory/api/npm/<REPO_KEY>/express 350ms

Where:

• <YOUR_ARTIFACTORY_URL>: Your JFrog Platform URL (for example, acme.jfrog.io).
• <REPO_KEY>: The name of your npm remote repository in Artifactory.

If you see your Artifactory hostname in the output, PTC is working. Cloudflare Gateway intercepted the request and rerouted it through Artifactory.

Troubleshooting

SSL Error During npm Install

The Cloudflare certificate is not trusted. Check:

1. The Cloudflare certificate is installed on the workstation (see Prerequisites).
2. The NODE_EXTRA_CA_CERTS environment variable points to the correct certificate file (if you set it manually).
3. The Cloudflare One Client is connected and TLS decryption is enabled.

Artifactory Hostname Not Appearing in Verbose Output

The request was not rerouted. Check:

1. The Cloudflare One Client is connected and signed in.
2. The firewall redirect policy is active and includes the correct registry hostnames.
3. The policy HTTP Method condition includes GET and HEAD (not POST).
4. Artifactory has been configured with the Package Reroute Config API for the relevant package type.

The npm Install Was Rerouted But Curation Blocked the Package

This is expected behavior when a JFrog Curation policy violation is detected. Check your Curation policy in Artifactory under Curation > Audit to understand why the package was blocked.

Frequently Asked Questions

This section provides answers to frequently asked questions.
