AppTrust OneModel GraphQL

Reference for JFrog AppTrust GraphQL

Using JFrog OneModel GraphQL, you can create a single query to retrieve information from different services and REST API endpoints in the JFrog Platform, returning only the fields you need.

The AppTrust GraphQL API exposes data about your AppTrust applications, application versions, promotions, sources, and bound package versions. It follows the JFrog OneModel GraphQL conventions and supports filtering, ordering, and cursor-based pagination.

Prerequisites

  • Requires Artifactory version 7.104.1 or later
  • JFrog AppTrust installed and running

You can also issue queries from the JFrog Platform GraphQL Playground at Integrations > GraphQL Playground, where AppTrust queries appear under Query > ApplicationsQueries.

AppTrust Queries

All AppTrust queries are located under the applications field on Query (i.e. Query.applications: ApplicationsQueries!). The top-level queries are:

  • getApplication(key: String!): Application — fetch a single application by its unique key. Returns null with a NOT_FOUND extension code when the application does not exist.
  • searchApplications(where: ApplicationWhereInput!, first: Int, after: Cursor, orderBy: ApplicationOrderInput): ApplicationConnection! — paginated search for applications matching the given filter.
  • getApplicationsByPackageVersionBindings(packages: [ApplicationPackageVersionBindingInput!]!, limitPerPackage: Int): [ApplicationsByPackageVersionBindingResult!]! — for each input package (with optional version), return the applications bound to it (capped per package).
  • getApplicationVersion(applicationKey: String!, version: String!): ApplicationVersion — fetch a single application version. Returns null with a NOT_FOUND extension code when missing.
  • searchApplicationVersions(where: ApplicationVersionWhereInput, first: Int, after: Cursor): ApplicationVersionConnection! — search application versions across one application or one project (must specify applicationKey XOR projectKey), optionally narrowed by artifact identity.

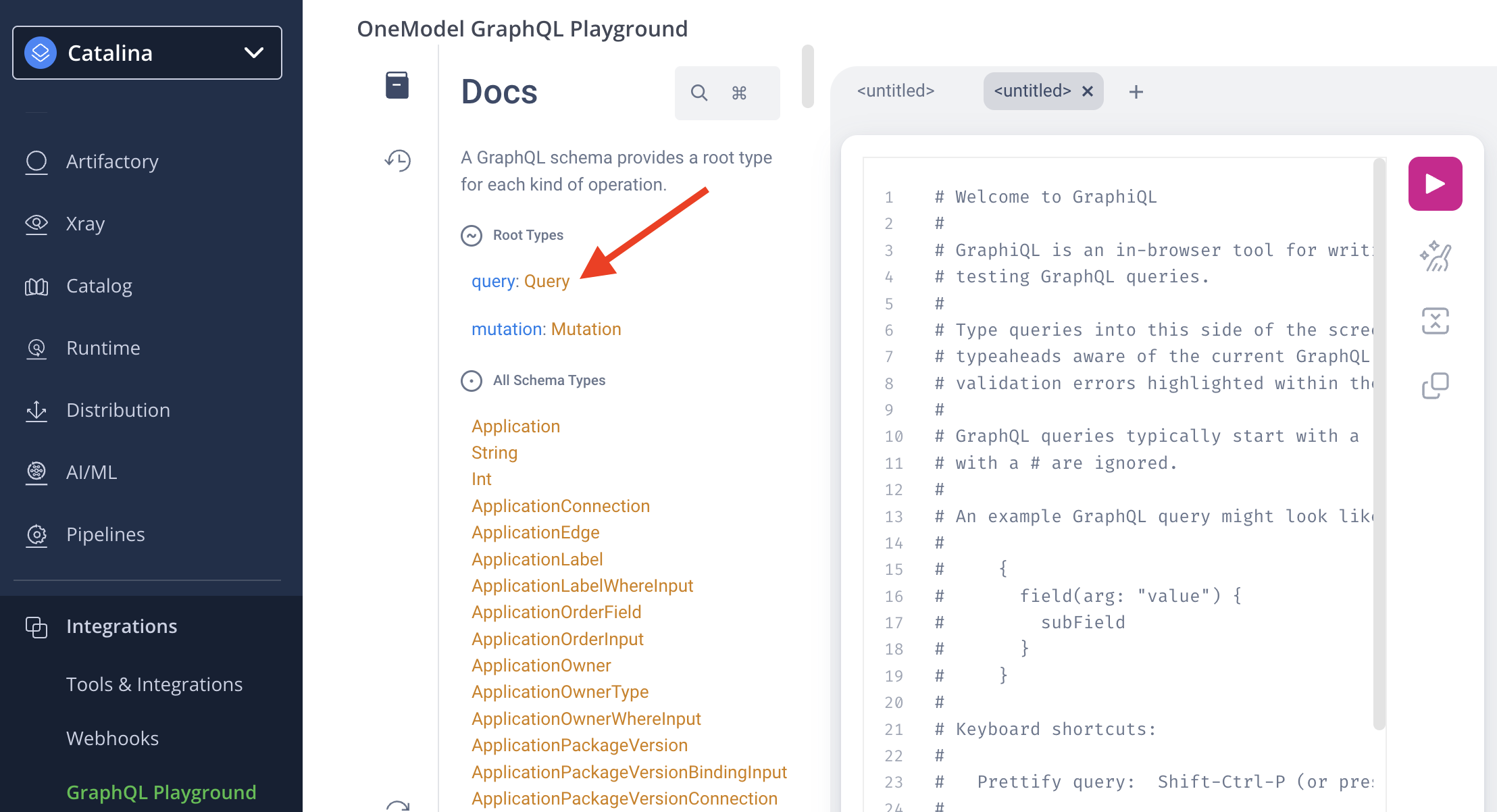

In the Playground, you will see them grouped under ApplicationsQueries.

Documentation

The detailed documentation of the AppTrust Queries appears in the Playground with the queries. In addition, this document provides:

  • General information that applies to all of the queries
  • A sample procedure for creating and running a query in the Playground
  • Detailed samples of requests and responses

Create and Run a Query

To create and run a query:

  1. In the JFrog Platform, go to Integrations > GraphQL Playground > Query > ApplicationsQueries.
  1. If this is the first time you are creating a query, read the text in the query panel, then delete it.
  2. Enter the text of your query as shown in the simple example below. The query asks for the display name and description of a specific application which is identified by its application key.
query {
  applications {
    getApplication(key: "green-burger") {
      displayName
      description
    }
  }
}
  1. Click the arrow on the top right of the query panel. The response will appear to the right.
{
  "data": {
    "applications": {
      "getApplication": {
        "displayName": "Green Burger Application",
        "description": "Burger ordering application"
      }
    }
  }
}

Additional Sample Queries

The examples below demonstrate every top-level query and every nested connection on the AppTrust GraphQL surface. They are derived from an AppTrust integration test suite and reflect realistic field shapes.

A. getApplication

A1. Fetch an application by key (minimal)

query {
  applications {
    getApplication(key: "green-burger") {
      key
      displayName
      criticality
    }
  }
}

Response

{
  "data": {
    "applications": {
      "getApplication": {
        "key": "green-burger",
        "displayName": "Green Burger Application",
        "criticality": "critical"
      }
    }
  }
}

A2. Fetch an application with all top-level fields

query {
  applications {
    getApplication(key: "green-burger") {
      key
      projectKey
      displayName
      description
      criticality
      maturityLevel
      owners {
        name
        type
      }
      labels {
        key
        value
      }
    }
  }
}

Response

{
  "data": {
    "applications": {
      "getApplication": {
        "key": "green-burger",
        "projectKey": "apptrust-demos",
        "displayName": "Green Burger Application",
        "description": "Burger ordering application",
        "criticality": "medium",
        "maturityLevel": "production",
        "owners": [
          { "name": "alice", "type": "USER" },
          { "name": "platform-team", "type": "GROUP" }
        ],
        "labels": [
          { "key": "environment", "value": "production" },
          { "key": "team", "value": "ordering" }
        ]
      }
    }
  }
}

Note: internal-realm labels (those used by AppTrust internals such as lifecycle.*) are filtered out of labels. Only user-facing labels are returned.

B. searchApplications

B1. Search by name substring with ordering

query {
  applications {
    searchApplications(
      where: { nameContains: "Burger" }
      orderBy: { field: NAME, direction: ASC }
    ) {
      edges {
        node {
          key
          displayName
        }
      }
      totalCount
    }
  }
}

B2. Filter by criticality and maturity level

criticality and criticalityIn are mutually exclusive; same for maturityLevel and maturityLevelIn.

query {
  applications {
    searchApplications(
      where: {
        criticalityIn: ["medium", "critical"]
        maturityLevelIn: ["experimental", "end_of_life"]
      }
    ) {
      edges {
        node {
          key
          displayName
          criticality
          maturityLevel
        }
      }
      totalCount
    }
  }
}

B3. Filter by label and owner

query {
  applications {
    searchApplications(
      where: {
        hasLabelsWith: { key: "environment", value: "production" }
        hasOwnersWith: { name: "alice", type: USER }
      }
    ) {
      edges {
        node {
          key
          displayName
          owners { name type }
          labels { key value }
        }
      }
    }
  }
}

B4. Compound owner / label filters with and and or

query {
  applications {
    searchApplications(
      where: {
        hasOwnersWith: {
          and: [
            { name: "alice", type: USER }
            { name: "platform-team", type: GROUP }
          ]
        }
        hasLabelsWith: {
          and: [
            { key: "environment", value: "production" }
            { key: "tier", value: "tier-1" }
          ]
        }
      }
    ) {
      edges { node { key displayName } }
    }
  }
}

B5. Filter by bound package version

query {
  applications {
    searchApplications(
      where: {
        hasPackageVersionWith: { type: "npm", name: "colors", version: "1.4.0" }
      }
    ) {
      edges {
        node {
          key
          displayName
        }
      }
    }
  }
}

B6. Pagination — request page 1, then page 2 using endCursor

query {
  applications {
    searchApplications(where: {}, first: 25) {
      edges {
        node { key displayName }
        cursor
      }
      pageInfo {
        hasNextPage
        endCursor
      }
      totalCount
    }
  }
}

Use the returned pageInfo.endCursor as the after argument on the next request:

query {
  applications {
    searchApplications(where: {}, first: 25, after: "<endCursor from previous page>") {
      edges { node { key } cursor }
      pageInfo { hasNextPage endCursor }
    }
  }
}

B7. Invalid input examples

  • first: -1 → INVALID_INPUT (first must be non-negative).
  • first: 251 on searchApplications → INVALID_INPUT (above max of 250).
  • after: "not-a-real-cursor" → INVALID_INPUT (invalid cursor).
  • Combining criticality and criticalityIn in the same where → INVALID_INPUT.

C. Application.packageVersionsConnection

C1. Page through bound package versions with VCS info

query {
  applications {
    getApplication(key: "green-burger") {
      key
      packageVersionsConnection(first: 25) {
        edges {
          node {
            type
            name
            version
            vcsCommit {
              revision
              vcsUrl
              branch
            }
          }
          cursor
        }
        pageInfo {
          hasNextPage
          hasPreviousPage
          startCursor
          endCursor
        }
        totalCount
      }
    }
  }
}

C2. Filter by package type

query {
  applications {
    getApplication(key: "green-burger") {
      packageVersionsConnection(where: { type: "npm" }, first: 50) {
        edges { node { type name version } }
        totalCount
      }
    }
  }
}

D. Application.versionsConnection

D1. Filter by tag

query {
  applications {
    getApplication(key: "green-burger") {
      versionsConnection(where: { tag: "release-2026Q1" }) {
        edges { node { version tag } }
      }
    }
  }
}

D2. Filter by release status

query {
  applications {
    getApplication(key: "green-burger") {
      versionsConnection(where: { releaseStatus: "RELEASED" }) {
        edges {
          node {
            version
            releaseStatus
            currentStageName
          }
        }
      }
    }
  }
}

D3. Order by version using semver, descending

query {
  applications {
    getApplication(key: "green-burger") {
      versionsConnection(
        first: 10
        orderBy: { field: VERSION, direction: DESC, versionSortType: SEMVER }
      ) {
        edges { node { version createdAt } }
      }
    }
  }
}

With versionSortType: SEMVER, the after cursor argument is not supported. Use LEXICOGRAPHIC if you need cursor-based pagination across pages.

E. getApplicationVersion

E1. Full version graph (status, releasables, sources, evidence)

query {
  applications {
    getApplicationVersion(applicationKey: "green-burger", version: "1.0.0") {
      application { key }
      version
      tag
      createdBy
      createdAt
      status
      releaseStatus
      currentStageName
      messages { text }
      evidenceSubject { fullPath }
      releasables {
        releasablesCount
        artifactsCount
        totalSize
        sources {
          sourceType
          ... on ApplicationVersionSourceBuild {
            name
            number
            startedAt
            repositoryKey
          }
          ... on ApplicationVersionSourceReleaseBundle {
            name
            version
            repositoryKey
          }
        }
        releasablesConnection {
          edges {
            node {
              name
              version
              packageType
              releasableType
              sha256
              totalSize
              artifacts {
                filePath
                downloadPath
                sha256
                size
                evidenceSubject { fullPath }
              }
              sources {
                sourceType
                ... on ApplicationVersionSourceBuild { name number repositoryKey }
                ... on ApplicationVersionSourceReleaseBundle { name version repositoryKey }
                ... on ApplicationVersionSourceApplicationVersion { applicationKey version }
              }
            }
            cursor
          }
          totalCount
          pageInfo { hasNextPage endCursor }
        }
      }
    }
  }
}

E2. Filter releasables by package type

query {
  applications {
    getApplicationVersion(applicationKey: "green-burger", version: "1.0.0") {
      releasables {
        releasablesConnection(where: { packageTypeIn: ["npm", "maven"] }) {
          edges { node { name version packageType } }
          totalCount
        }
      }
    }
  }
}

E3. Get VCS commit info for a package-version releasable

query {
  applications {
    getApplicationVersion(applicationKey: "green-burger", version: "1.0.0") {
      releasables {
        releasablesConnection {
          edges {
            node {
              name
              version
              packageType
              releasableType
              vcsCommit { revision vcsUrl branch }
            }
          }
        }
      }
    }
  }
}

Response

{
  "data": {
    "applications": {
      "getApplicationVersion": {
        "releasables": {
          "releasablesConnection": {
            "edges": [
              {
                "node": {
                  "name": "colors",
                  "version": "1.4.0",
                  "packageType": "npm",
                  "releasableType": "package_version",
                  "vcsCommit": {
                    "revision": "abc123def456789",
                    "vcsUrl": "https://github.com/example/colors.git",
                    "branch": "main"
                  }
                }
              }
            ]
          }
        }
      }
    }
  }
}

E4. Resolve the federated packageVersionLocation

packageVersionLocation is resolved by the OneModel Packages service. It is null when the field is not requested or when the location cannot be determined (e.g. a non-package releasable, or before any promotion sets a stored location).

query {
  applications {
    getApplicationVersion(applicationKey: "green-burger", version: "1.0.0") {
      releasables {
        releasablesConnection {
          edges {
            node {
              name
              version
              packageType
              packageVersionLocation {
                repositoryKey
                packageVersion {
                  package { type name }
                  version
                }
              }
            }
          }
        }
      }
    }
  }
}

E5. Top-level ApplicationVersion.sources (all four implementations)

query {
  applications {
    getApplicationVersion(applicationKey: "green-burger", version: "1.0.0") {
      sources {
        sourceType
        ... on ApplicationVersionSourceBuild {
          name
          number
          startedAt
          repositoryKey
          evidenceSubject { fullPath }
        }
        ... on ApplicationVersionSourceReleaseBundle {
          name
          version
          repositoryKey
          evidenceSubject { fullPath }
        }
        ... on ApplicationVersionSourceApplicationVersion {
          applicationKey
          version
          evidenceSubject { fullPath }
        }
        ... on ApplicationVersionSourceDirect {
          sourceType
        }
      }
    }
  }
}

E6. NOT_FOUND example

query {
  applications {
    getApplicationVersion(applicationKey: "green-burger", version: "9.9.9") {
      version
    }
  }
}

Response

{
  "data": {
    "applications": {
      "getApplicationVersion": null
    }
  },
  "errors": [
    {
      "message": "No application version was found for key 'green-burger' and version '9.9.9'",
      "path": ["applications", "getApplicationVersion"],
      "extensions": { "code": "NOT_FOUND" }
    }
  ]
}

F. ApplicationVersion.promotionsConnection

F1. List promotions with their artifacts and evidence

query {
  applications {
    getApplicationVersion(applicationKey: "green-burger", version: "1.0.0") {
      version
      releaseStatus
      currentStageName
      promotionsConnection {
        edges {
          node {
            sourceStageName
            targetStageName
            createdBy
            createdAt
            status
            artifacts {
              repositoryKey
              path
              sha256
              packageType
              packageName
              packageVersion
              evidenceSubject { fullPath }
            }
            messages { text }
          }
          cursor
        }
        pageInfo { hasNextPage endCursor }
        totalCount
      }
    }
  }
}

Response

{
  "data": {
    "applications": {
      "getApplicationVersion": {
        "version": "1.0.0",
        "releaseStatus": "PRE_RELEASE",
        "currentStageName": "DEV",
        "promotionsConnection": {
          "edges": [
            {
              "node": {
                "sourceStageName": "",
                "targetStageName": "DEV",
                "createdBy": "admin",
                "createdAt": "2026-05-06T10:15:30.000Z",
                "status": "COMPLETED",
                "artifacts": [
                  {
                    "repositoryKey": "apptrust-demos-npm-local",
                    "path": "colors/1.4.0/colors-1.4.0.tgz",
                    "sha256": "b50eb83eda7cc37519809e240338fded8e625169945bbfe6d4156445c6610498",
                    "packageType": "npm",
                    "packageName": "colors",
                    "packageVersion": "1.4.0",
                    "evidenceSubject": {
                      "fullPath": "apptrust-demos-npm-local/colors/1.4.0/colors-1.4.0.tgz"
                    }
                  }
                ],
                "messages": []
              },
              "cursor": "..."
            }
          ],
          "totalCount": 1
        }
      }
    }
  }
}

The first promotion in a chain has an empty sourceStageName (no prior stage).

G. getApplicationsByPackageVersionBindings

G1. Match by package without a version (any version qualifies)

query {
  applications {
    getApplicationsByPackageVersionBindings(
      packages: [
        { type: "npm", name: "colors" }
        { type: "maven", name: "spring-boot" }
        { type: "nuget", name: "Newtonsoft.Json" }
      ]
      limitPerPackage: 3
    ) {
      package { type name version }
      applications {
        key
        displayName
        criticality
      }
    }
  }
}

G2. Match by exact package version

query {
  applications {
    getApplicationsByPackageVersionBindings(
      packages: [
        { type: "npm", name: "colors", version: "1.4.0" }
        { type: "maven", name: "spring-boot", version: "1.0.0" }
      ]
      limitPerPackage: 5
    ) {
      package { type name version }
      applications { key displayName }
    }
  }
}

G3. Validation behavior

  • limitPerPackage: 0 is valid — each result returns an empty applications list.
  • limitPerPackage: -1 returns INVALID_INPUT with message limitPerPackage must be non-negative.

H. searchApplicationVersions

H1. Find versions of one application that contain a given artifact (by SHA-256)

query {
  applications {
    searchApplicationVersions(
      where: {
        applicationKey: "green-burger"
        hasArtifactWith: {
          sha256: "b50eb83eda7cc37519809e240338fded8e625169945bbfe6d4156445c6610498"
        }
      }
    ) {
      edges {
        node {
          application { key displayName }
          version
          releaseStatus
          releasables {
            releasablesCount
            artifactsCount
          }
        }
      }
      pageInfo { hasNextPage endCursor }
    }
  }
}

H2. Project-wide search by file path

query {
  applications {
    searchApplicationVersions(
      where: {
        projectKey: "apptrust-demos"
        hasArtifactWith: { filePath: "colors/1.4.0/colors-1.4.0.tgz" }
      }
    ) {
      edges {
        node {
          application { key }
          version
        }
      }
    }
  }
}

H3. Combined filePath + sha256 (AND semantics)

query {
  applications {
    searchApplicationVersions(
      where: {
        projectKey: "apptrust-demos"
        hasArtifactWith: {
          filePath: "colors/1.4.0/colors-1.4.0.tgz"
          sha256: "b50eb83eda7cc37519809e240338fded8e625169945bbfe6d4156445c6610498"
        }
      }
    ) {
      edges { node { application { key } version } }
    }
  }
}

H4. Constraints

  • where.applicationKey and where.projectKey are mutually exclusive — exactly one must be provided.
  • When hasArtifactWith is used, totalCount is always null on the resulting ApplicationVersionConnection. Use pageInfo.hasNextPage to drive pagination.
