Artifactory and Xray Integration with Microsoft Teams

Microsoft Teams is a business communication platform developed by Microsoft, as part of the Microsoft 365 family of products.

This integration is between the JFrog Platform and Microsoft Teams that focuses on notifications from the JFrog Platform. If you do not already have a JFrog account, you can get the free tier here.

We know that software development happens in a myriad of tools and collaboration environments. As your mission-critical tools for DevOps, the results of many key events that occur in Artifactory and Xray reveal whether or not your software pipeline is on-track to deliver production-quality releases. The JFrog app for Microsoft Teams brings real-time visibility and awareness of what’s happening in your JFrog-powered software pipelines to your entire team through one of the most widely used collaboration tools. When it comes to people across the organization knowing what’s going on, there aren’t great solutions. This will give each user situational awareness about occurrences in the JFrog Platform. Additionally, where appropriate - they will have easy links and action buttons to follow-up on the event.

With the JFrog app for Teams, developers can better collaborate on delivering quality releases, responding in real-time to DevOps events as they occur.

📘

Note

• For a list of supported commands with Microsoft Teams integrations, see Supported Commands with Microsoft Teams Integration
• For types of supported notifications with Microsoft Teams integration, see Supported Notifications with Microsoft Teams Integration

Additionally, you can:

• Watch this video to see what it looks like to create your first notification.
• Learn how to create Xray Security Policies and Watches.

How it Works

• This integration allows you the ability to see Artifact, Artifact Properties, Docker, Release Bundle, Distribution and Build events through notifications and actionable cards inside the Microsoft Teams browser.
• You can send these notifications to multiple teams and channels.
• Additionally, you can get vulnerability and license compliance notifications based on policies setup in JFrog Xray and take actions.

Terms and Conditions

You can read our terms and conditions here.

Privacy Policy

You can read our privacy policy here.

Issues

To raise any issues with this integration, you can use github issues here.

Contact Support

If you need help with this Microsoft Teams integration, contact [email protected]. If you need general JFrog support, you can reach out to us on the contact form here.

Uninstall

To completely uninstall application, follow the instructions here

Artifactory and Xray Microsoft Teams Integration Configuration Overview

This topic reviews how to integrate Artifactory and Xray with Microsoft Teams

Requirements

• You need to enable integrations by configuring the Access yaml file; see Enabling New Integrations for details.

  Your organization should have an instance of the JFrog Platform version 7.27 or above. You can signup for a free instance at: https://jfrog.com/start-free/

• You must be a user with Admin permissions to authenticate your organization’s app with your JFrog Platform Deployment (JPD).

• You must be a user with Admin permissions to create the initial notifications for Artifactory and Xray.

• Your organization must already have setup policies and watches prior to getting Xray notifications in MSTeams.

Configuration Overview

Install Microsoft Teams

The first thing to do is to download the Microsoft Teams Application.

You can learn how to download and install Microsoft Teams here.

Once, you have Microsoft Teams, you can add the JFrog application by navigation to the lower left-hand corner and clicking on the icon called Apps.

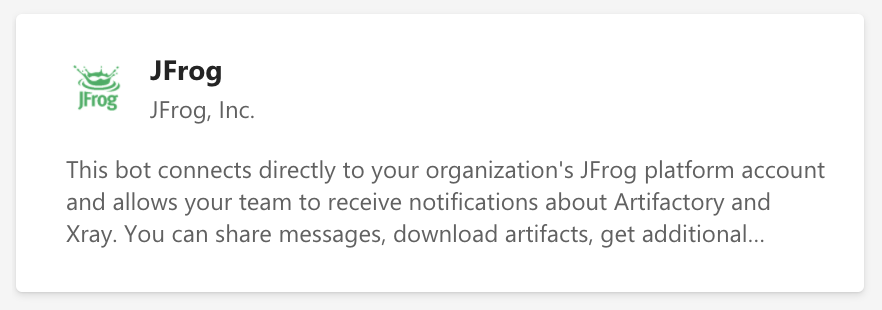

Then, in the search bar, type in “JFrog” and look for the JFrog app*.

*Now, before you add the JFrog app, you must have a team created in your Microsoft Teams browser. If you do not, please create a team.

Click on the app and a window will open that has an “Add to Team” button. Click on that button and select the team you want.

Then click on Set up a bot button to finish installing the JFrog app with Microsoft Teams.

Once you’ve added the JFrog Application from the Microsoft Teams browser, you must connect the application to your JFrog Platform Deployment (or JPD) instance.

Configure the JPD for Xray and Artifactory Microsoft Teams Integration

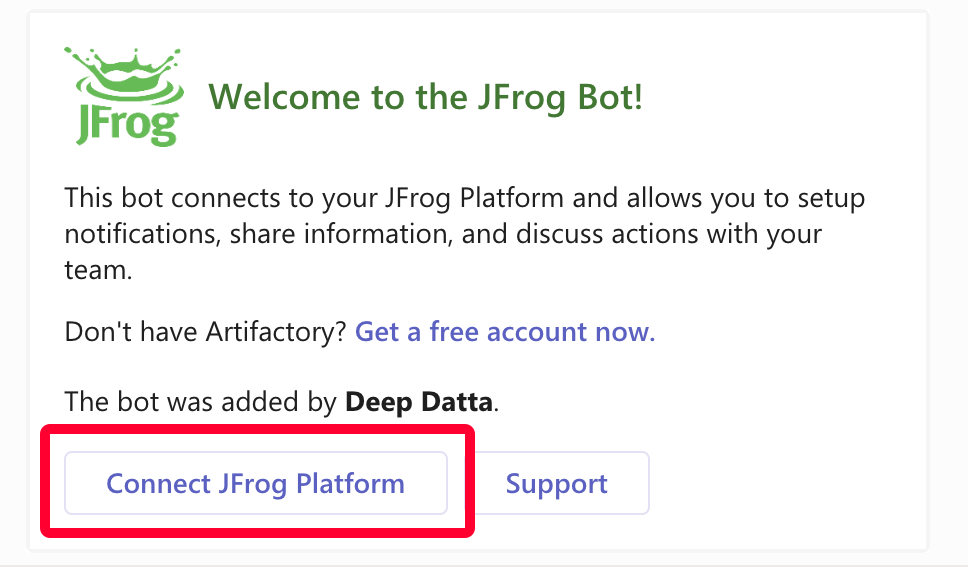

The first message you will see from the JFrog Bot is going to be an introduction card that asks you to Connect JFrog Platform. Click on that button.

Now, you will need to login to your JFrog instance with Admin credentials. Once logged in, navigate to the Administration > General > Applications area.

*In the free JFrog Platform versions, this information can be found under: Administration > Security > Integrations.

Then click on + New Client Integration. Provide it a name and then click on the application dropdown and select the JFrog Collaboration Integration.

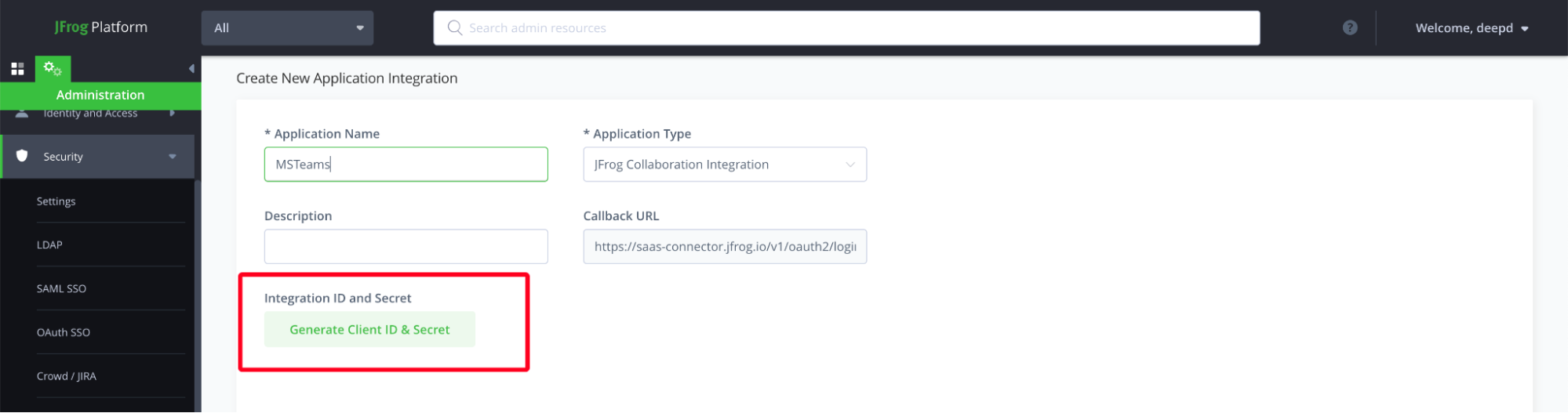

Next, under Integration ID and Secret, click on the button: Generate your ID and Secret.

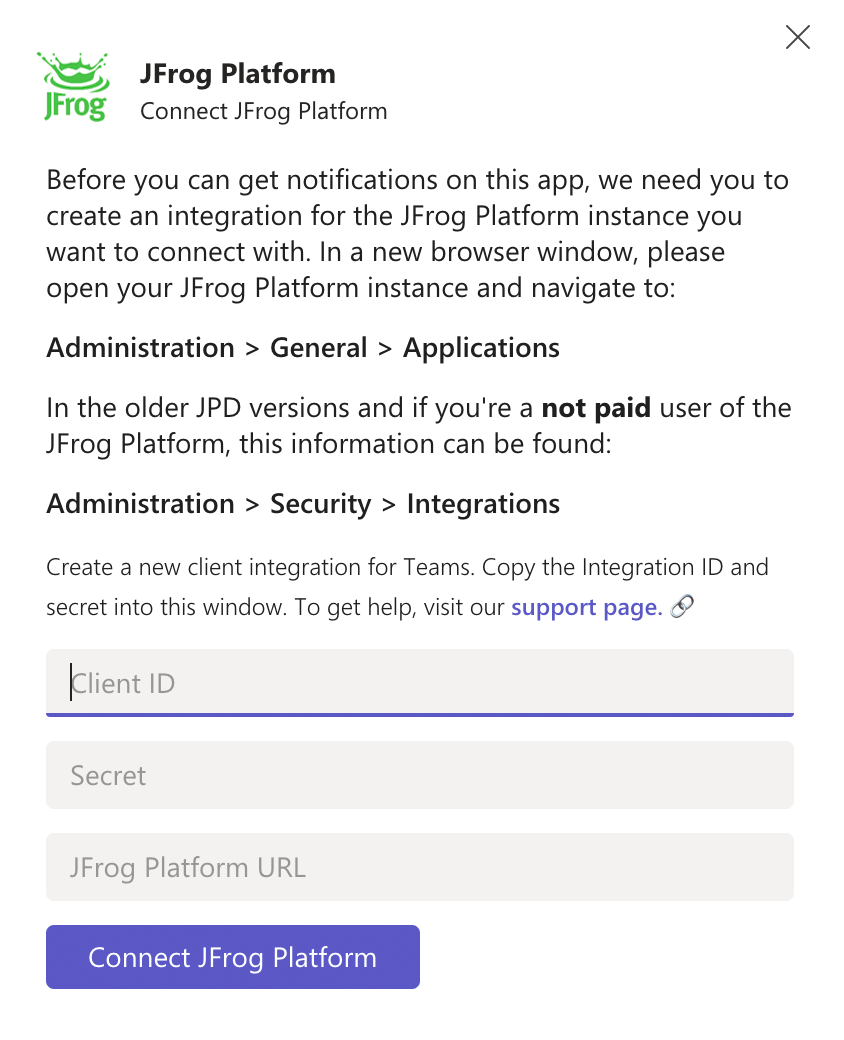

When you have your Integration ID and Secret, copy and paste these items into the modal window.

Last, copy and paste your JFrog Platform URL (found at the top of your browser window) into the modal window where it says JFrog Platform URL.

Hit Save and look for the success message! Great, you have now connected your organization’s JFrog account to the Microsoft Teams app.

Next, there will be a window that asks you to Get Started. Click on Get Started and on the next screen: Sign In. Use the username and password provided to you by JFrog.

Login to the JFrog Platform with your credentials and Allow the Microsoft Teams JFrog application to authenticate to the JFrog Platform.

Create an Artifactory Notification as part of Microsoft Teams Integration

Next, you’ll see a Get Started button, click on that to bring up the main menu of items.

Once you see the menu, you can create new notifications and add them to your Microsoft Teams channel*. You can also type @jfrog and select the menu option in the text to bring up the menu.

*We expect you to have your channels already setup - how you want to organize notifications to various teams and channels is up to your organization.

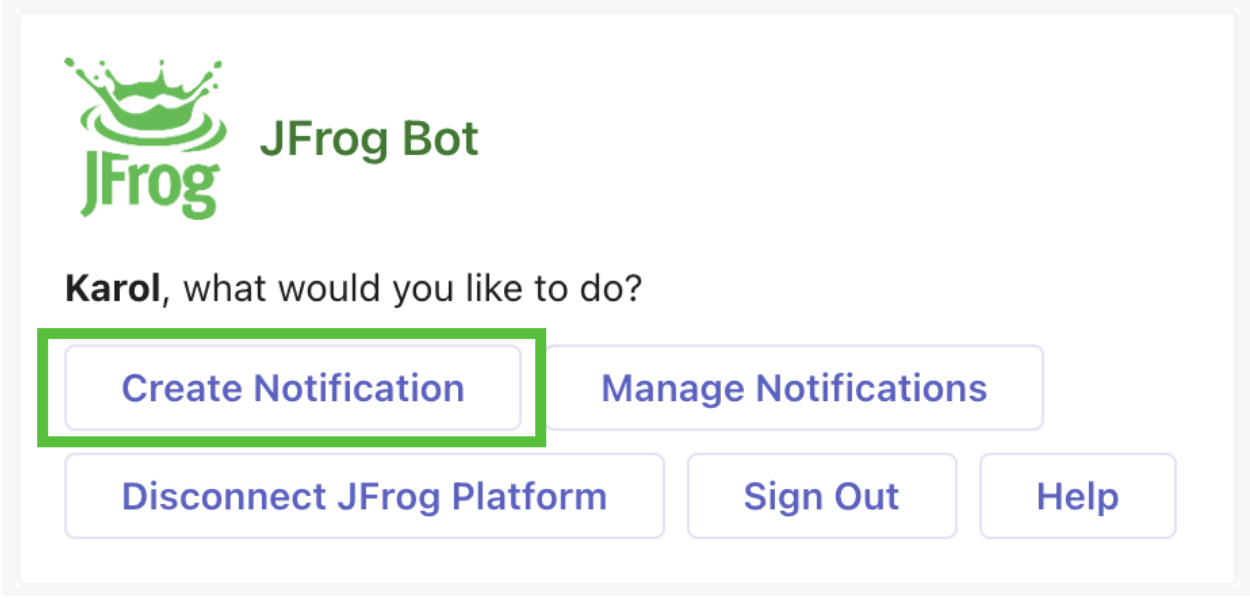

Click on Create Notification.

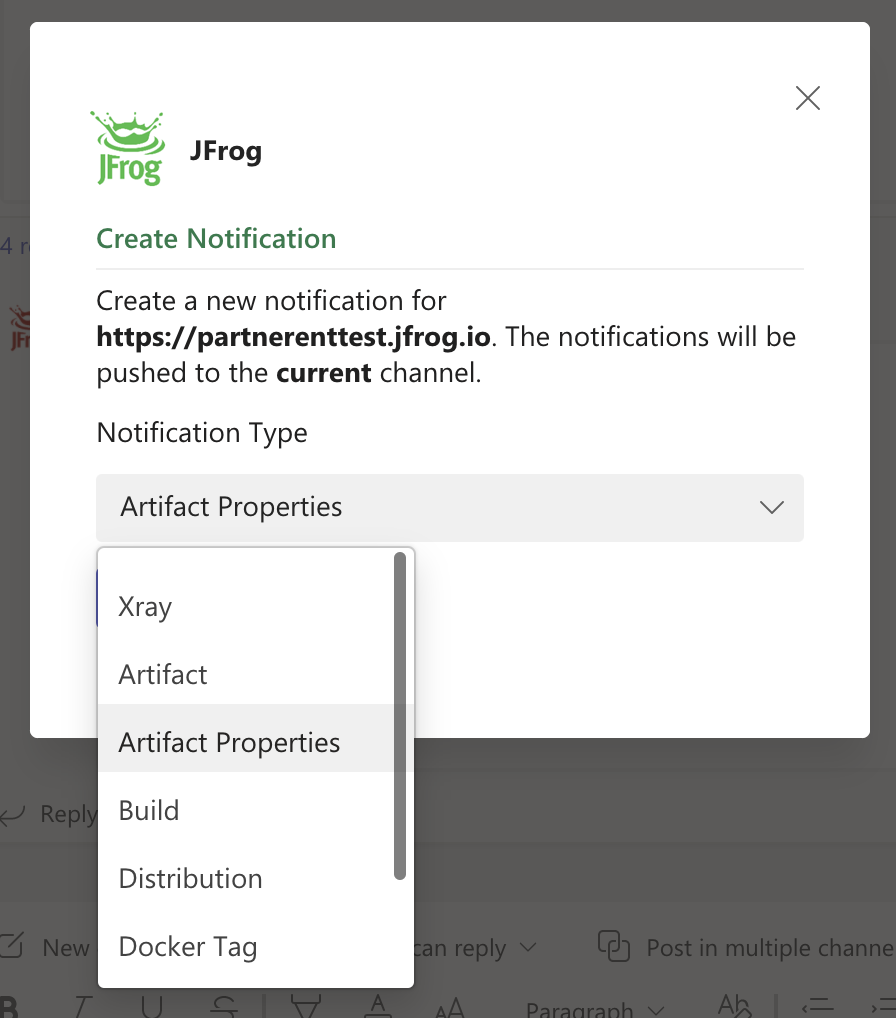

From the window that appears, use the drop-down to select the notification type you want to create. In this example, we’ll select Artifact Properties.

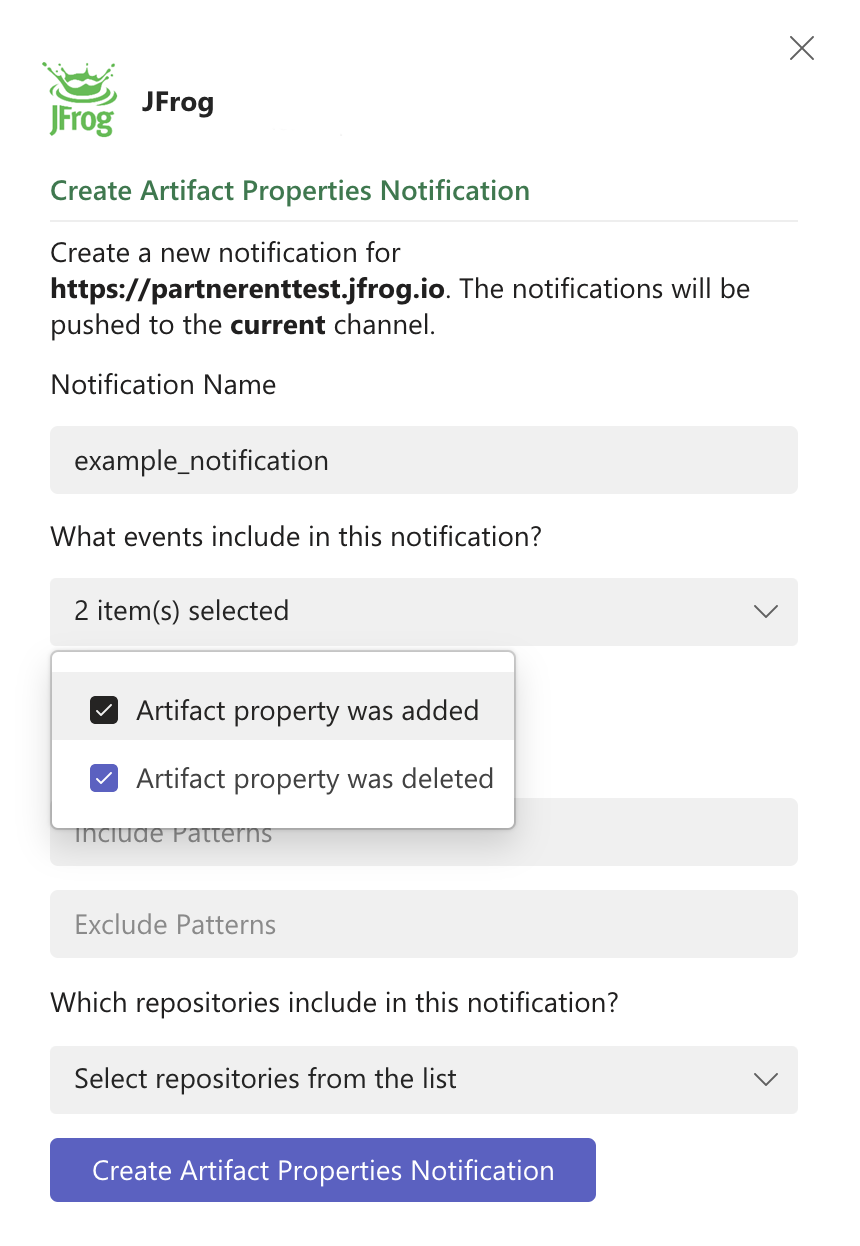

On the next screen, give the notification a name followed by selecting which kinds of artifact properties events you want to get notified about.

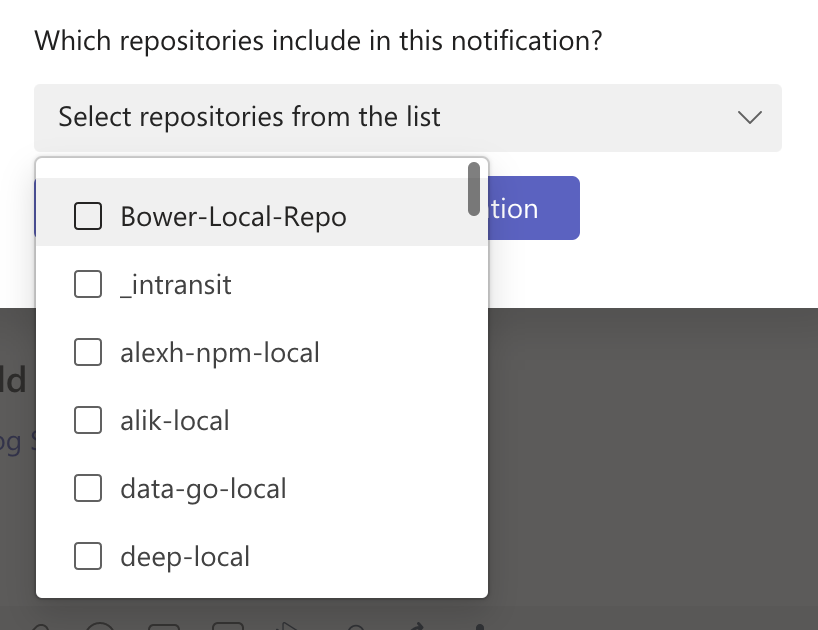

Last, you’ll want to choose which repositories you can get notified from. You have the option of selecting Any Local and Any Remote or you can scroll down and select specific repositories using the drop-down selection.

Click on the Create button at the bottom of the window and you will see a Success message appear. You can now close this window and go back to the channel.

Congrats!!! You should receive one notification for every event type used in the notification.

Test the notification:

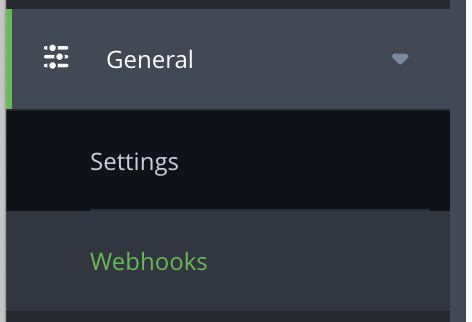

If you want to test the notification, navigate to the JFrog Platform and go to Administration > General > Webhooks.

Look for the name of the notification you created and click on it.

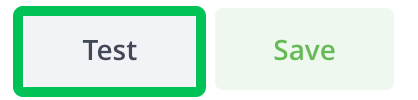

On the bottom right-hand corner, click on the Test button.

You should get a confirmation in the JFrog Platform that a dummy webhook was sent.

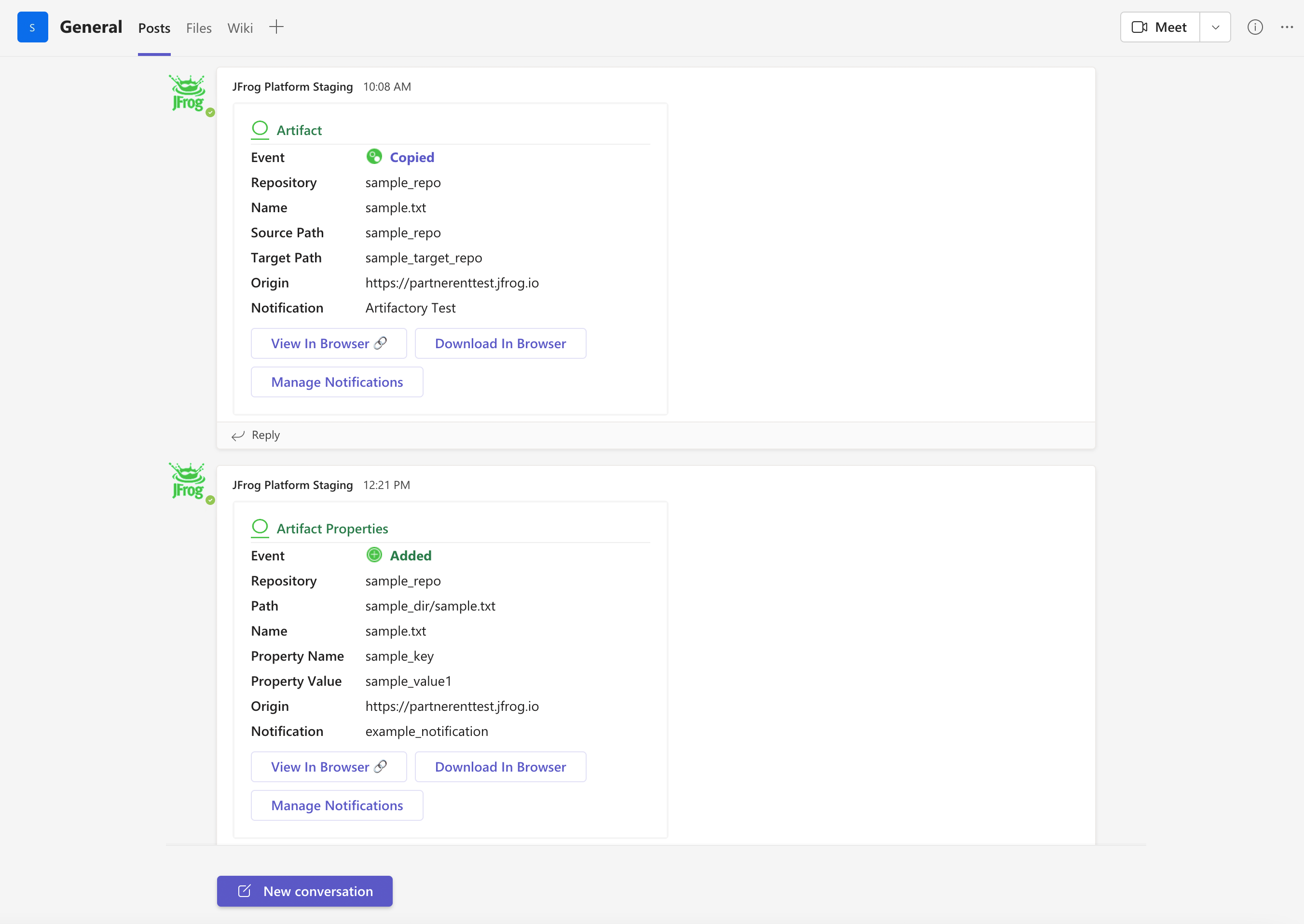

If you navigate back to the Microsoft Teams, you will see this information in the UI.

NOTE: It can take up to 2-4 minutes to receive all notifications.

Supported Commands with Microsoft Teams Integration

To use the commands in Microsoft Teams, start by typing @jfrog and hit enter. Next, click on Select or type a command and you should see the following commands:

Supported Notifications with Microsoft Teams Integration

All notifications are based on webhook events in the JFrog Platform. The currently supported notifications include:

Notifications about Artifactory

Notification about Xray

Notifications about Commands

Sign Out of Artifactory and Xray from Microsoft Teams

To sign out of the application, click on Help or type /jfrog help

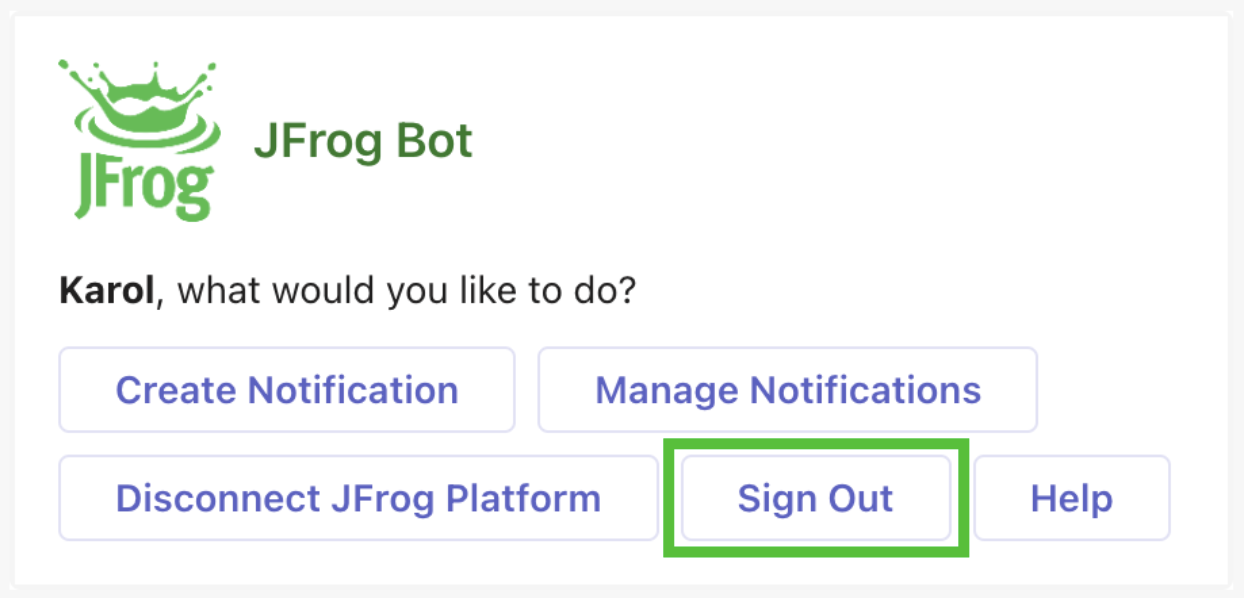

A message will show up with a button that allows you to Sign Out of the JFrog Bot.

Please note that signing out does not disconfigure the JFrog Platform from the JFrog Bot in Microsoft Teams.

Disconnect JFrog Platform Deployment from Microsoft Teams

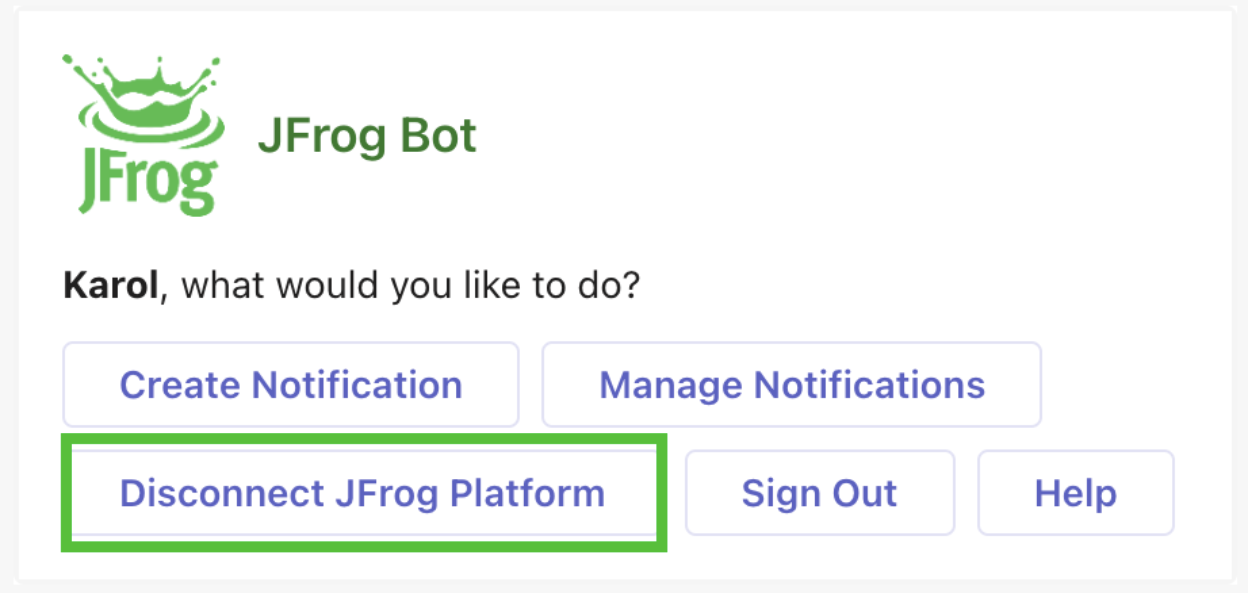

To disable the connection between your JFrog Platform instance and the JFrog bot in Microsoft Teams, you can use the Disconnect JFrog Platform button found on the menu.
