Using the S3 Intelligent Tiering Storage Class

Amazon S3 offers different storage classes for storing objects. One of the storage classes is Intelligent Tiering. It transitions objects between different tiers based on how frequently they are accessed, in a fully managed automatic way, and can lead to significant cost savings.

Intelligent Tiering sets up a monitoring mechanism that tracks when your object was last accessed. Objects that are not accessed are transitioned to cheaper storage tiers. Objects that are accessed are automatically moved back to the frequent access tier. This is done without any degradation to performance or added operational procedures.

The Benefits of Using Intelligent Tiering with Artifactory

If you are using AWS S3 for your Artifactory storage, you are probably using the Standard storage class. This is the default for S3 and historically was the suggested practice for Artifactory.

After thorough testing, JFrog has determined that Artifactory can work with the Intelligent Tiering storage class, maintaining all the same service levels as the Standard storage class. There are some important implementation details and this guide aims to direct you through the migration process from Standard S3 storage to Intelligent Tiering storage.

Potential Costs Savings

The possible cost savings from using Intelligent Tiering depends on the access pattern of your data. Based on some examples that AWS mentions, savings may range between 20% and 60%.

Performance of S3 Intelligent Tiering Storage

Performance of first-byte latency and transfer speed is similar for the three automatic access tiers used in the S3 Intelligent Tiering Storage Class. This is true for both direct cloud-storage download or regular download.

Caveats in the S3 Intelligent Tiering Storage Class

Service Level Agreement (SLA) Availability

Moving from the Standard storage class to the Intelligent Tiering class implies one nine less in both the designed availability and its SLA, as per AWS documentation.

The durability remains 99.999999999% (11 nines).

Additional Access to Objects

The mechanism by which Intelligent Tiering transitions objects between tiers is based on the access pattern to each object. Operations like replication, if in place, may continuously access objects that are not currently used by the application and render Intelligent Tiering’s transition mechanism inefficient.

JFrog recommends mapping the procedures applied to the objects of your storage before embarking on the transition to Intelligent Tiering because if the objects are constantly refreshed, Intelligent Tiering will never transition them to the cheaper tiers.

Implementing the S3 Intelligent Tiering Storage Class

Intelligent Tiering offers automatic access tiers and asynchronous archive access tiers. The main difference between these tiers is that the latter requires time to restore objects.

⚠️

Warning

To run Artifactory with Intelligent Tiering, only automatic access tiers can be used. The asynchronous archive access tiers should not be used under any circumstances.

The automatic access tiers are:

• Frequent Access Tier
• Infrequent Access Tier
• Archive Instant Access Tier

If you have no special need to create a custom configuration, Intelligent Tiering works fine on Artifactory with the default settings. If you need to create a custom configuration, you must read the section Warning about Custom Configurations to ensure that you do not mistakenly use the archive access tiers, as these tiers can be activated during a customer configuration.

Changes in Artifactory

Currently, there are no changes you need to make to Artifactory to work with Intelligent Tiering.

Changes in S3

The steps for implementing Intelligent Tiering as the storage class for the S3 objects in Artifactory are as follows:

1. Establish the criteria for which objects you want to migrate to the Intelligent Tiering storage class. Click here for more details.

2. Set up a lifecycle rule to transition all existing objects to Intelligent Tiering. The same lifecycle rule should also set the storage class of newly created objects to Intelligent Tiering. Make sure to also include the previous versions, in case versioning is enabled. Click here for more details.

3. Optional: After no less than one month, run an S3 Inventory job and report how many objects have been transitioned to the infrequent access tier. It’s worth considering that the cost of S3 for the first month will be higher than when using standard storage. This is because all objects will sit in the frequent access tier that doesn’t offer a reduction in costs, and on top of that you will be paying for the S3 Intelligent Tiering service. Click here for more details.

4. Optional: After no less than 2 more months (3 months after enabling Intelligent Tiering), run another S3 Inventory job. This time you should observe objects that have been transitioned to the archive tier. Click here for more details.

📘

Note

Steps 3 and 4 are optional since they are only recommended for tracking cost-effectiveness.

5. Put in place an AWS batch job needed for performing a rollback. Click here for more details.

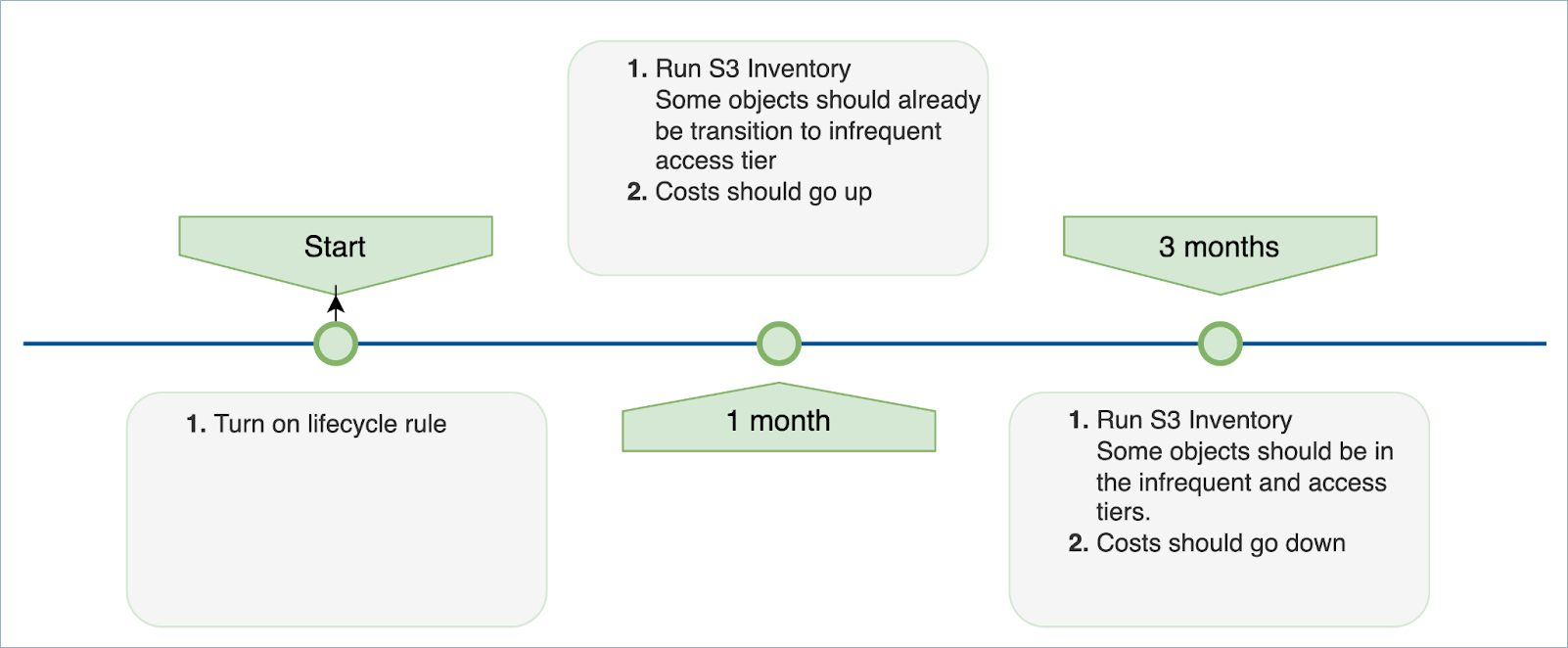

The diagram below shows the timeline of transitioning objects for the first three months of using Intelligent Tiering storage.

Establish Criteria for Migrating Objects

Intelligent Tiering manages objects only above 128 KB. This means that there is no benefit to transitioning small objects. Additionally, there is a monitoring cost that depends on the quantity of objects with the Intelligent Tiering storage class.

JFrog suggests using the S3 Lens to analyze the state of your bucket and decide which objects to migrate to Intelligent Tiering. Consider the table below as the state of a bucket.

Note that 97% of the objects (by count) are below 128KB. Intelligent Tiering manages objects only above 128KB, so these objects are not worth transitioning to the Intelligent Tiering storage class. Most of the storage space (95%) is for objects above 10MB. By count, this represents 1% of the stored objects.

The Intelligent Tiering management cost is per amount of objects, the same as the cost incurred for the initial transition of these objects to the new storage class. However, savings on storage cost is per GB stored.

Considering this, if you transition to Intelligent Tiering only the objects above 10MB, you will be paying for the initial transition and then the management of only 1% of your stored objects while exposing to Intelligent Tiering 95% of your storage space, which will lead to cost savings.

Create a Lifecycle Rule to Migrate Objects

Objects in the bucket need to be transitioned to the Intelligent Tiering storage class. This can be achieved with a lifecycle rule.

This rule has two purposes:

• Migrate existing objects to Intelligent Tiering, filtering by the object size. Only objects that are above the minimum size established previously should be migrated.
• Set Intelligent Tiering as the storage class for all newly created objects that are above the minimum size.

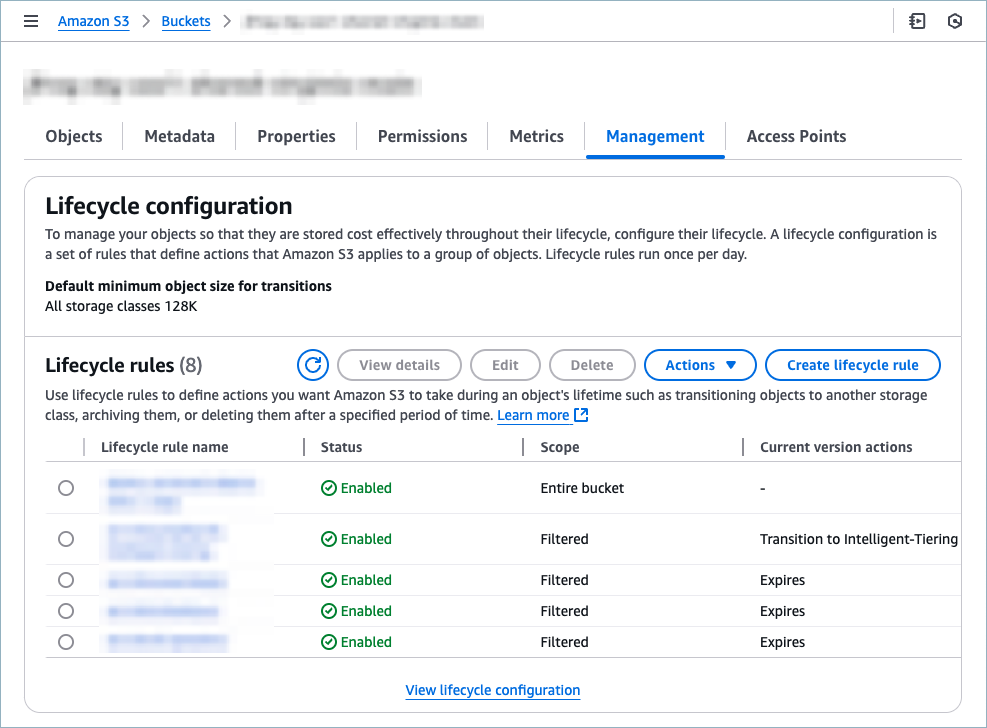

To configure a lifecycle rule, select your bucket, select the Management tab, and click Create lifecycle rule, as shown below.

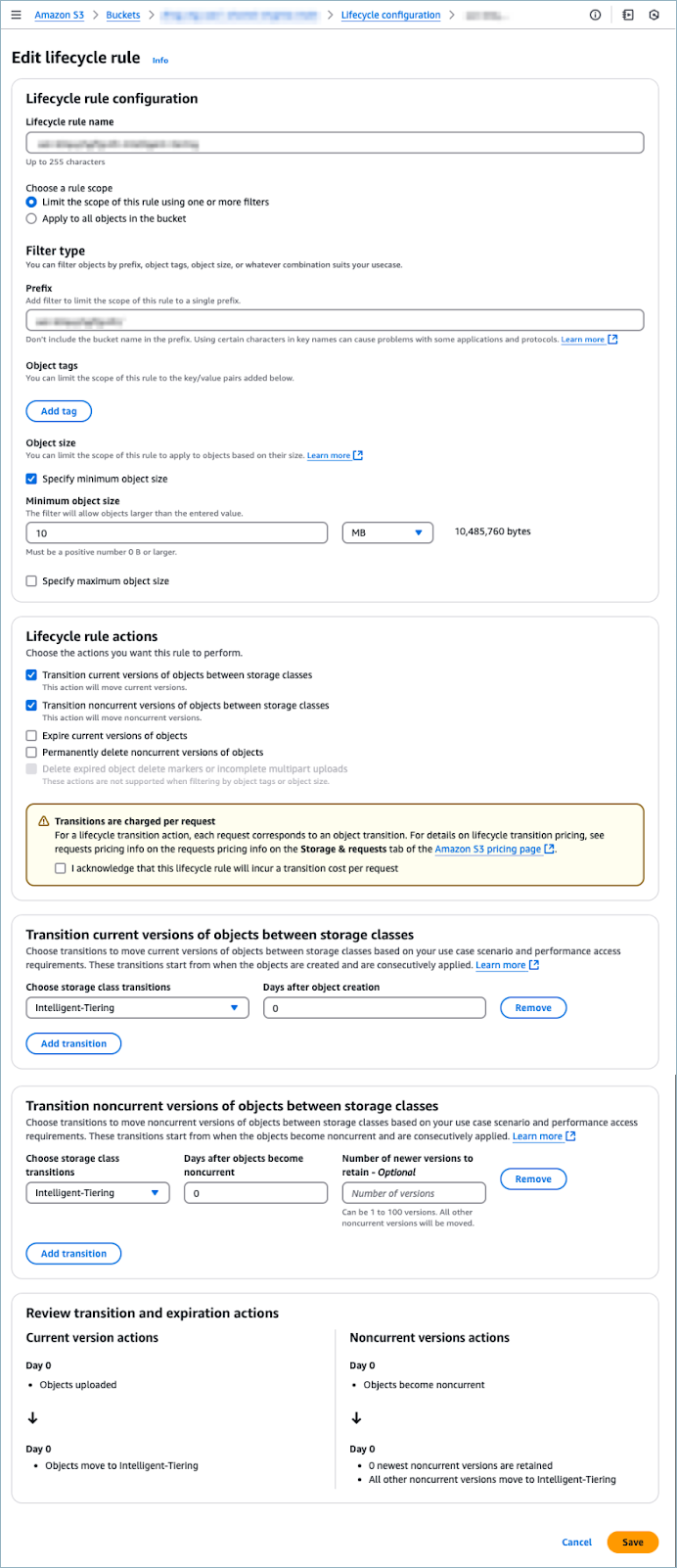

The example below shows a lifecycle rule that migrates objects to Intelligent Tiering. The lifecycle rule indicates a minimum object size of 10 MB.

A few observations about lifecycle rules:

1. A lifecycle rule is triggered once a day, it doesn’t run immediately. This means that pre-existing objects and also newly created objects may remain in the Standard storage class for a day until the lifecycle rule starts running and transitioning them.
2. It processes the objects in batches.
3. Depending on the amount of objects to migrate, it may take a few days for a lifecycle rule to transition all existing objects.
4. The lifecycle rule is billed based on the amount of requests it makes. This number depends on the amount of objects to be transitioned.

For more information on lifecycle rules, see this blog post and this GitHub repo.

Running Inventory Jobs

After enabling the lifecycle rule, start tracking to which tiers objects are moved. AWS offers S3 Inventory as a tool that allows you to see the tier of each object. Other FinOps tools can also be used to obtain this information. Additionally, the CUR (cost and usage file) that AWS provides will not tell you which objects are in which tier but what cost is associated with what tier. This means that indirectly, you will also be able to get this information.

Perform a Rollback

In the scope of this guide, rolling back means transitioning all objects back to the Standard storage class. It is not possible to use a lifecycle rule to transition the objects in Intelligent Tiering back to the Standard storage class (as explained in the AWS documentation). Instead, this can be achieved manually by performing the following steps:

1. Run S3 Lens or S3 Inventory to get a list of objects with the Intelligent Tiering storage class.
2. Use the batch mechanism of AWS to write a batch job that will perform a batch copy of the objects found in step 1, this time specifying Standard as the storage class. Note that this will create a new bucket version (if the bucket is versioned) and because it’s a copy operation, the Last Modified field for each object will be updated.

Warning about Custom Configurations

If you need to create a custom configuration, you must read this section to ensure that you do not mistakenly use the archive access tiers, as these tiers can be activated during a custom configuration and if they are activated Artifactory will not work properly with Intelligent Tiering.

The following steps show how to initiate a custom configuration and where you need to be careful to not select one of the archive access tiers.

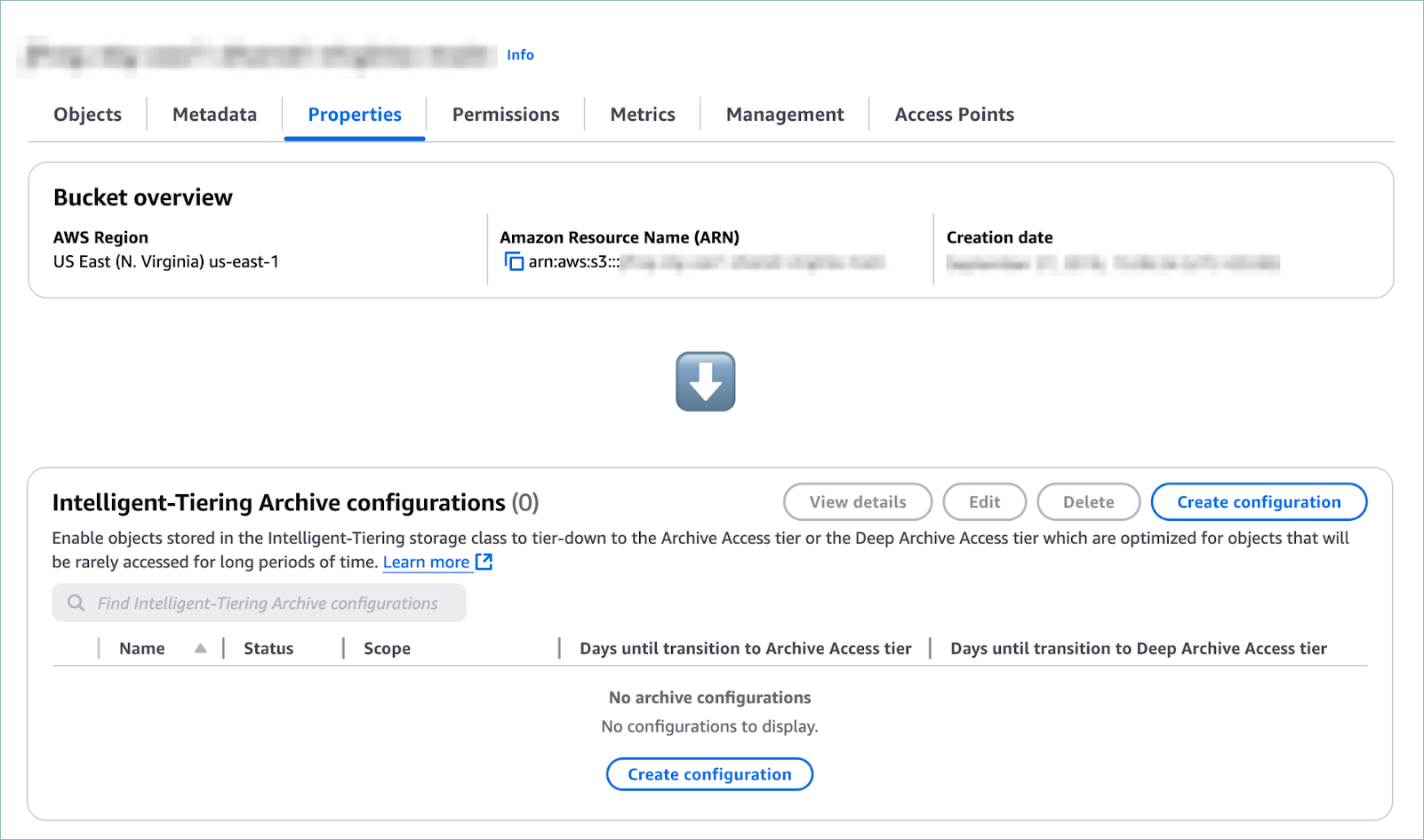

1. Select the Properties tab of your S3 bucket and scroll down to the section Intelligent Tiering Archive configurations, as shown below.

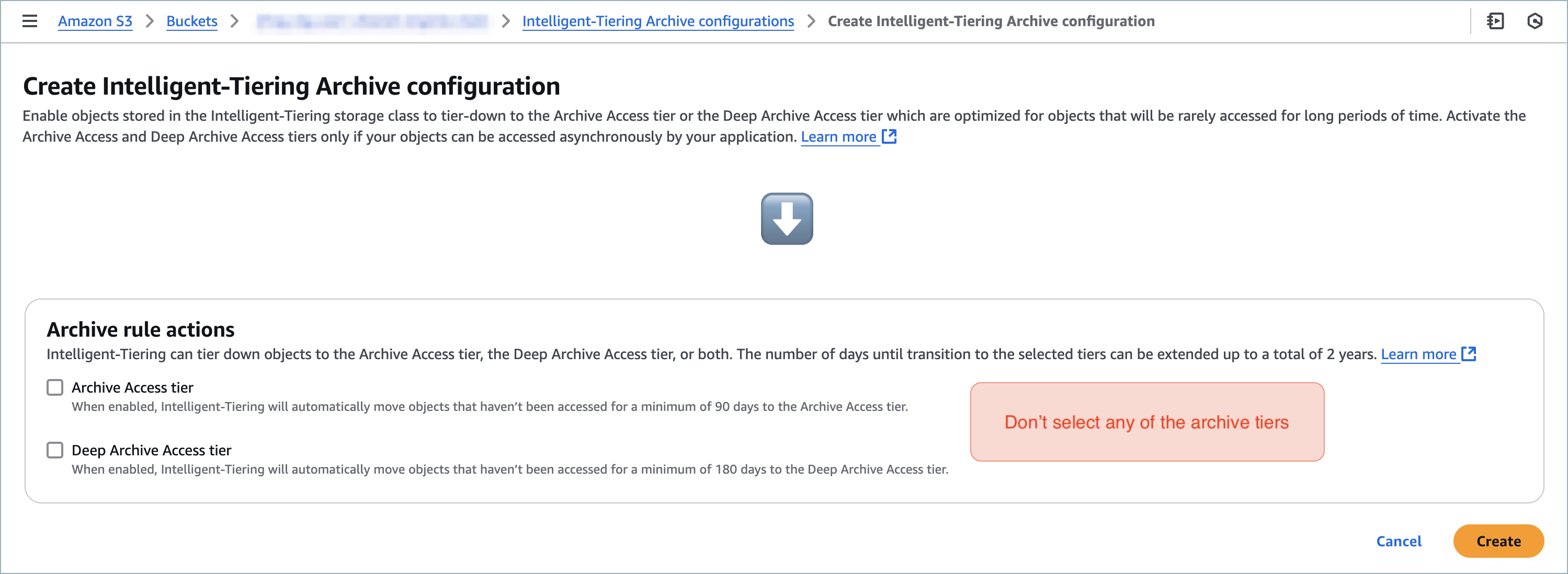

2. Click Create configuration. The Create Intelligent Tiering Archive configurations screen appears, as shown below.



   When you are in this screen, it is extremely important that you do not select any of the Archive rule actions. If you do this, Artifactory will not work properly with Intelligent Tiering.
