Cold Storage

📘

Subscription Information

This feature is supported on the Self-Hosted platform, with an Enterprise X or Enterprise+ license.

JFrog Cold Storage is an archiving solution that enables you to move artifacts or packages not in use from one Artifactory instance to another Artifactory instance that is connected to cost-effective storage. As such, Cold Storage provides customers with the ability to retain artifacts and packages that are not in use, but cannot be deleted for several years due to regulatory obligations.

The Cold Storage solution provides an easy setup and configuration process. In addition, it enables you to define an archiving policy that runs periodically, select artifacts or packages based on specific criteria, and then move the artifacts or packages to a Cold Artifactory instance. The artifacts or packages that are moved to a Cold instance are removed from the Live Artifactory instance. This helps to improve the usability, search capabilities, and performance of the Live instance, by reducing the number of artifacts and packages that require maintenance.

Artifacts and packages that have been archived in the Cold Artifactory instance can be searched for and restored at any point in time using either the UI or dedicated archive search-and-restore APIs. Archived artifacts and packages can be restored to their original location in the Live Artifactory instance or to a new destination. The restore mechanism runs as a background process and notifies you when completed. The metadata associated with archived artifacts or packages is not lost during the archiving period, and you can continue to consume this data after items are restored.

In the following sections, you will find information about how the Cold Storage is set up, as well as the features that are included in this solution.

📘

Note

Currently there is a limitation when using Cold Storage with a Federated Repository. If a retention policy (used to archive artifacts or packages to a Cold Storage server) is configured to clear artifacts or packages from a Federated Repository, the archiving event and any restore event will not be synced with the Federation members. In addition, any deleted artifacts or packages will be recreated due to the Federation. Therefore, it is not recommended to use Cold Storage with Federated Repositories.

In a future Artifactory version, the sync with the Federation members will be enabled.

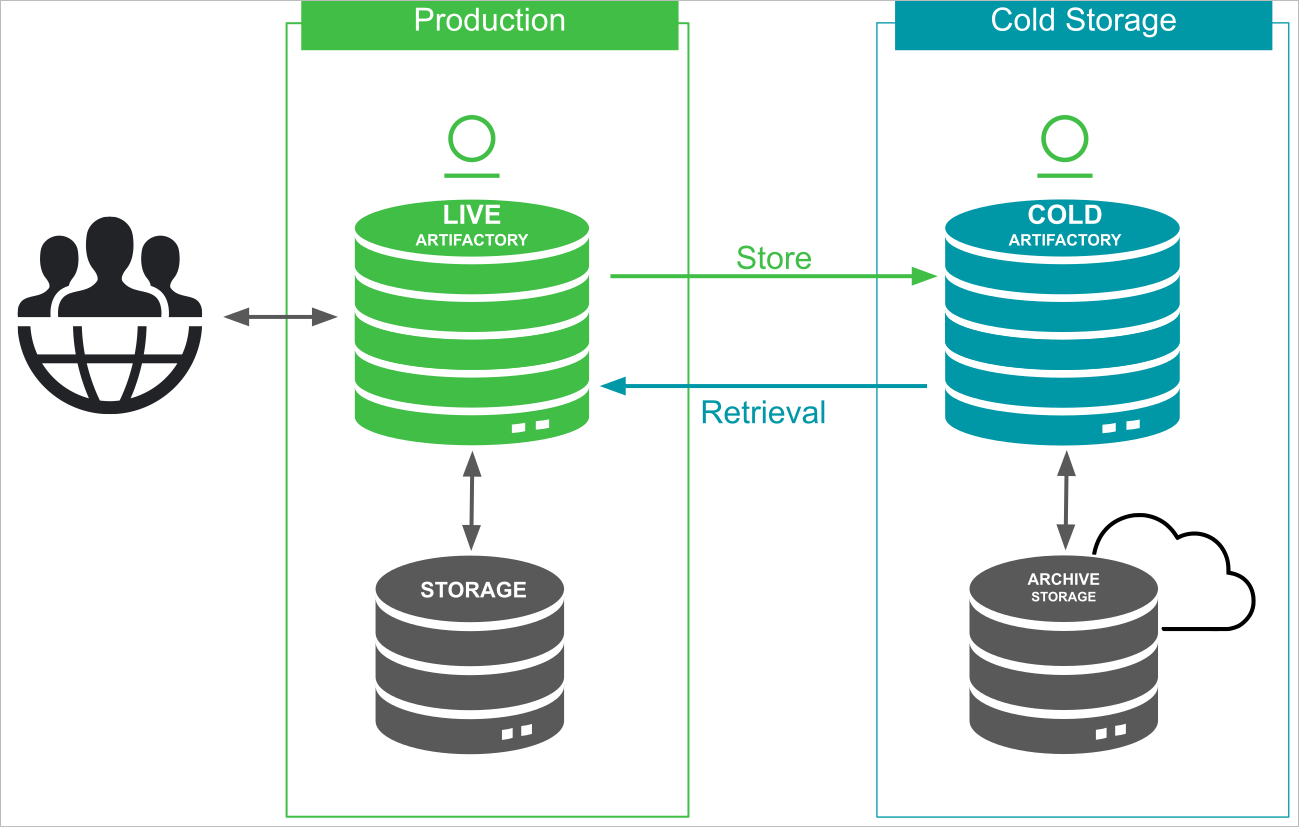

Cold Storage Architecture

The Cold Storage archiving solution is comprised of three main components:

• Live Artifactory instance

  Live Artifactory is a standard Artifactory instance from which artifacts or packages will be archived.

• Cold Artifactory instance

  Cold Artifactory is a stripped-down, limited-functionality version of an Artifactory instance used for archiving purposes. The Cold instance is implemented as a dedicated Artifactory instance, connected to a binary storage provider (such as AWS Glacier).

📘

Note

One Cold Artifactory instance can be connected to only one Live Artifactory cluster. Every cluster of Artifactory that needs to archive requires a single Cold Storage instance with a dedicated license.

• Archive (binary storage provider)

  When setting up the Cold instance, you must connect it to a binary storage provider. You can use one of the following storage options:

  • A cloud provider

    • Supported: We currently support AWS S3 Glacier Flexible Retrieval for archiving and retrieving data.

📘

Note

The other S3 Glacier classes are not supported:

• S3 Glacier Instant Retrieval (GLACIER_IR)
• S3 Glacier Deep Archive (DEEP_ARCHIVE)

• Using S3 Glacier Flexible Retrieval: Configure the S3 Glacier Flexible Retrieval as your binary storage provider. Standard is the default retrievalTier in the binarystore.xml configuration file. This setting determines the speed and cost of data retrieval.

  Retrieval Tier Options: You can set the retrievalTier to one of the following three values:

  • Standard: Retrieves data in several hours. This tier is typically the most cost-effective for infrequent access.
  • Bulk: Suitable for large-scale retrievals, allowing you to retrieve data at a lower cost but with longer retrieval times ranging from several hours to a day.
  • Expedited: Allows you to retrieve data quickly in 1-5 minutes. This option is ideal for urgent access to specific data.

• Example Configuration: Below is a sample entry in the binarystore.xml file that demonstrates how to set the retrieval tier for S3 Glacier Flexible Retrieval:

  <config version="1">
  	<chain template="s3-storage-v3-archive"/> //Dedicated Cold Storage parameters
  	<provider type="s3-storage-v3" id="s3-storage-v3"> //Based on s3-storage-v3 Template
  		<bucketName>artifactory-ice-test-regular-bucket</bucketName>
  		<path>artifactory-on-ice</path>
  		<credential>creds</credential>
  		<identity>ident</identity>
  		<provider.id>aws-s3</provider.id>
  		<region>eu-central-1</region>
  	</provider>
  </config>

• A local storage provider

Cold Storage Features

Cold Storage has a number of features that enable you to archive, search, restore and monitor the archiving process. In the following section, you will find a detailed overview of the Cold Storage features as well as information about the logs that are created for some of these functions.

Archive Policy

Cold Storage enables admins to create archiving policies, which are used to decide which artifacts or packages need to be archived. When the archiving policy is executed, artifacts or packages are moved from the Live Artifactory instance to the Cold Artifactory instance, while the corresponding binaries are stored in the storage connected to the Cold Artifactory.

The archiving policies can be configured using the following options:

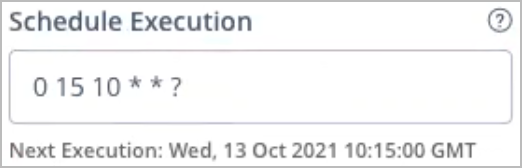

• Scheduled Execution: Scheduling enables you to configure the periodic execution of a policy that can be set to a daily, weekly, or monthly frequency. You can also define when (or after what period) the policy execution will be stopped, which enables you to perform archiving execution during weekends or maintenance windows.

📘

Note

If required, the archiving policy can also be executed manually.

• AQL-based Selection Criteria: When archiving artifacts (not for package archiving), you can define an AQL query that is executed to collect artifacts targeted for archival. The selection criteria can include:

  • Folders and Repositories: Select artifacts or packages located in specific folders within specific repositories.
  • Properties: Select artifacts based on specific properties, such as application versioning
  • Age: Select artifacts based on usage and age by defining 'Last Downloaded before' and 'Deployed before'

After artifacts or packages are successfully archived in the Cold instance, the archived items and corresponding metadata are deleted from the original repository in the Live instance. If the archive process fails, items and the corresponding metadata are not removed, and the incident is logged with an appropriate error message.

As the archive process progresses, the system generates detailed logs in the Artifactory service logs in the Live Artifactory instance. If an email server has been configured, the system sends notifications to the admin after the archiving policy execution is completed.

Admins can create, view, edit, and delete archiving policies as the need arises using the UI or APIs. For more information, see Working with Cold Storage.

📘

Note

Only Artifactory admins can create and run archiving policies.

Cold Storage Archive Search

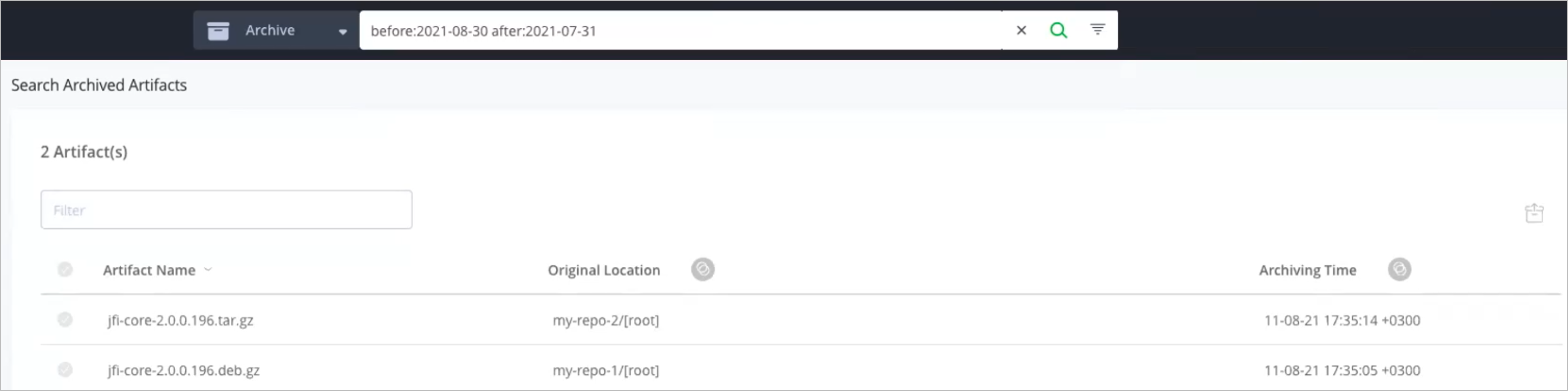

The search functionality enables admins to perform a dedicated archive search from the Live Artifactory for artifacts or packages that can later be restored. For information about performing search operations, see Search and Restore Archived Artifacts or Packages or to search using the REST APIs see Work with Cold Storage Using REST APIs.

Restoring Archived Items

After performing a search for archived artifacts or packages, admins can trigger the restoration of artifacts or packages from the Cold instance to the Live instance. Restoration is a non-destructive process and none of the restored artifacts or packages are deleted from the Cold instance.

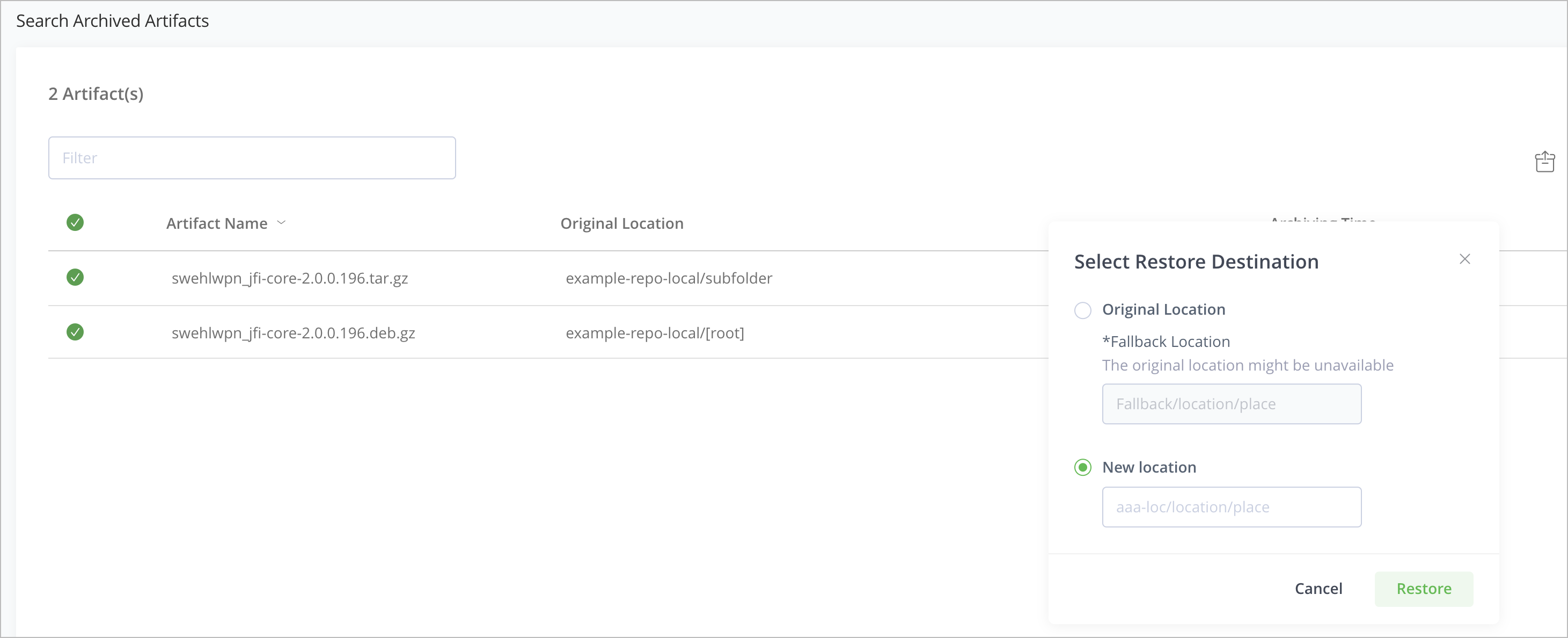

When creating a request for restoration, the admin can choose one of the following destinations:

• Restore items to their original repository and provide a fallback repository (if the original repository was deprecated)
• Restore all the items to a new repository

The system performs the restore operation in the background and updates the Artifactory service logs in the Cold Artifactory instance. After the restore operation is complete, the admin is notified by an email about the completion. This email provides a summary of the operation.

For more information about restoring artifacts, see Restore Archived Artifacts and Packages or Work with Cold Storage Using REST APIs.

📘

Note

• The admin must have an email server configured to receive email notifications.
• Depending on the number of items being restored, the restore process can take a few minutes to a few hours.
• If the restore process encounters an error, the process fails and corresponding error messages are logged.

Monitor Cold Storage

Policy and Archive Logs

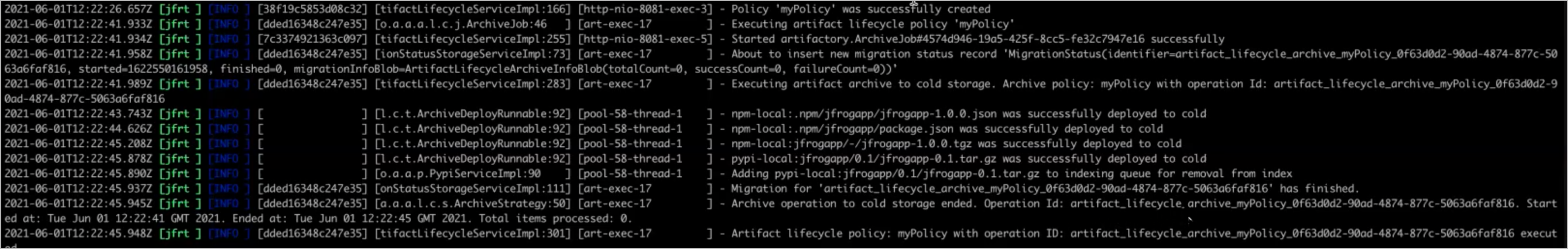

Cold Storage adds dedicated logs in the Live Artifactory service logs for the events that are related to the artifacts and packages being archived, including running archiving policies and the archive process itself. The following events are documented in the log:

• Create archiving policy

• Perform archiving policy execution

• Finish archiving policy execution, which includes the following information:

  • A short summary about the execution, including information about when the process started and ended, and the success percentage
  • The number of total processed items, successfully archived items, and items that failed to be archived
  • The status of each archived artifact or package

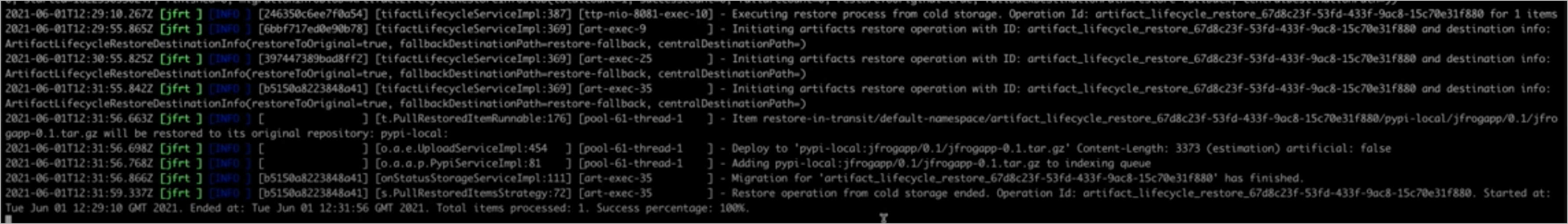

Restoration Logs

After restoring archived artifacts or packages, Cold Storage adds dedicated logs in the Cold Artifactory service logs for the events related to the items being restored. Dedicated logs are created for the following events:

• Start restore process: Each time the restore process starts, a log is created with the size, number of artifacts or packages, and approximate retrieval process end time
• Finish restore process
• Status for each restored object

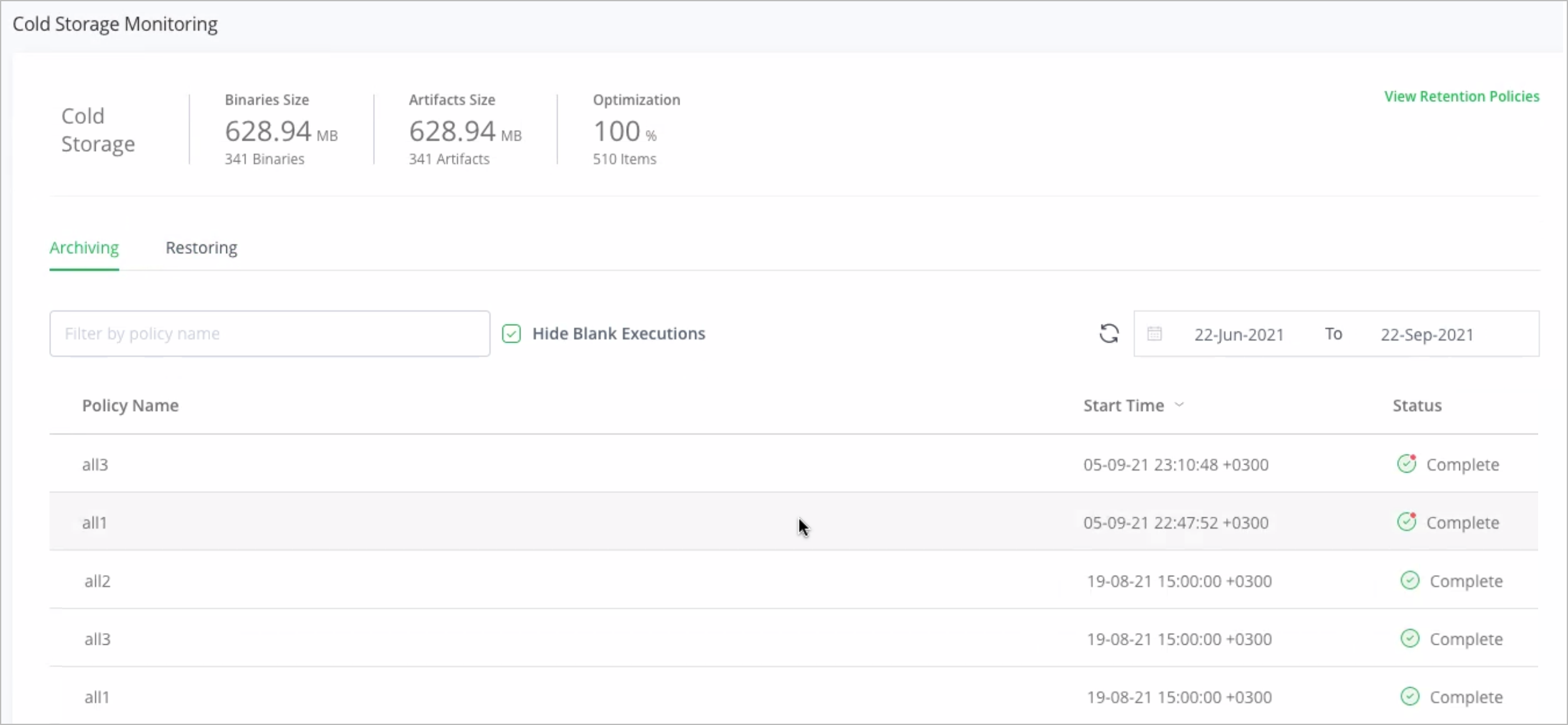

Archive and Restoration Operations

Because both the archive and restore operations take place in the background, Cold Storage provides a monitoring functionality that enables you to track the status and progress of these operations. The monitoring process provides the following information:

• Summary of the archived items with status: Provides the status and summary of the number of archived artifacts or packages and their size.

  • Can be filtered by from and to dates
  • Can be searched using a policy key

• Summary of restored items with status: Provides the status and summary of the number of restored artifacts or packages and their size.

  • Can be filtered by from and to dates

For more information, see Monitor Archive and Restoration Operations or Work with Cold Storage Using REST APIs.

Manage Cold Storage Bindings

Revoking a Binding Using the Platform UI

📘

Important Note on Revoking Bindings

You cannot remove the binding between the Live instance and the Cold instance in cases where the Cold instance is not available anymore.

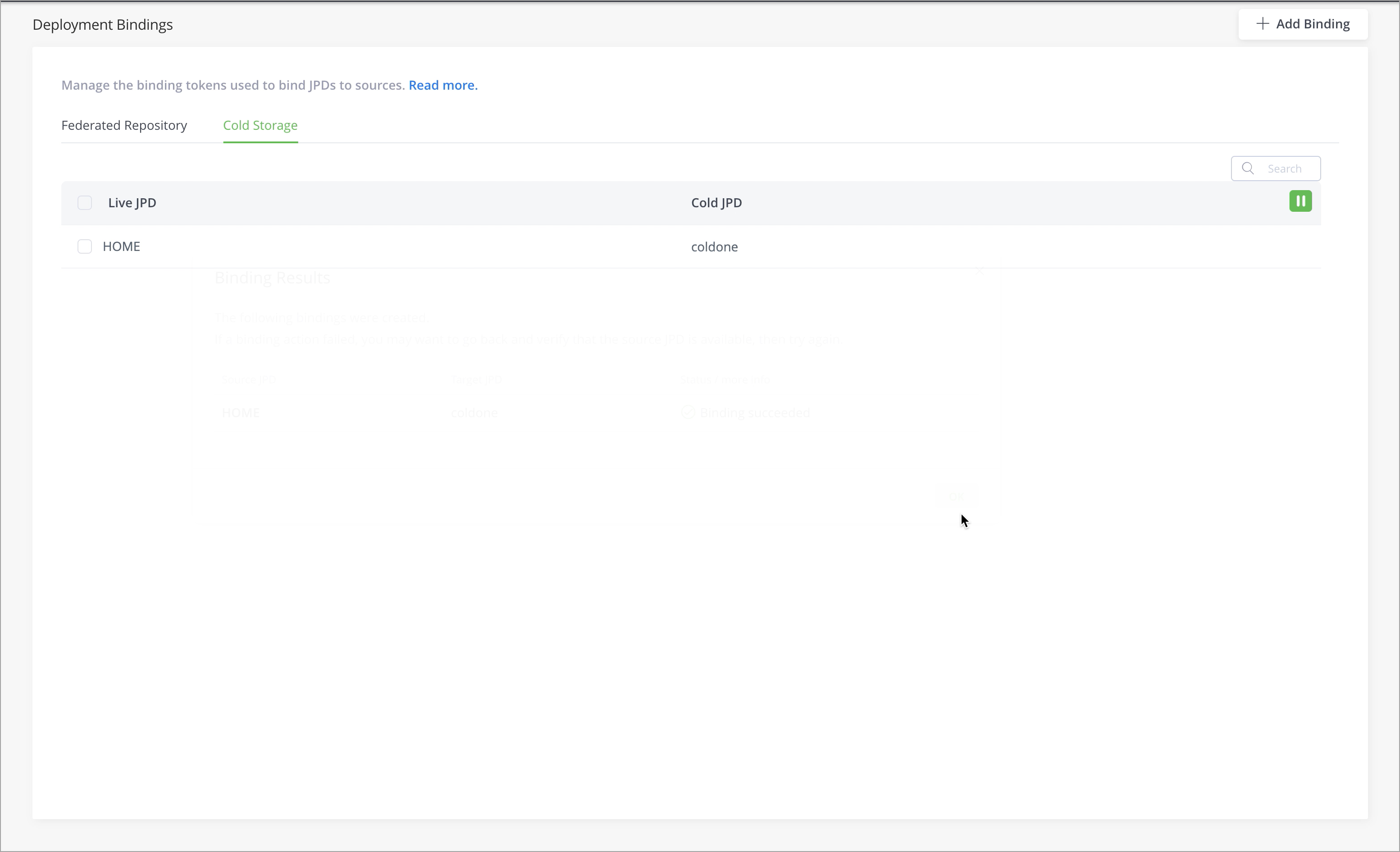

1. To revoke the binding between a Live and Cold instance, from the Administration module, click Platform Deployments | Bindings and then click the Cold Storage tab.



2. Select the checkboxes for the bindings you wish to remove, and then click the Delete button to the right of the binding.

3. If you are deleting multiple bindings, select all checkboxes, and at the bottom of the window, select Delete.

   This displays a confirmation message that asks if you are sure you wish to remove the binding.

4. Click OK to confirm.

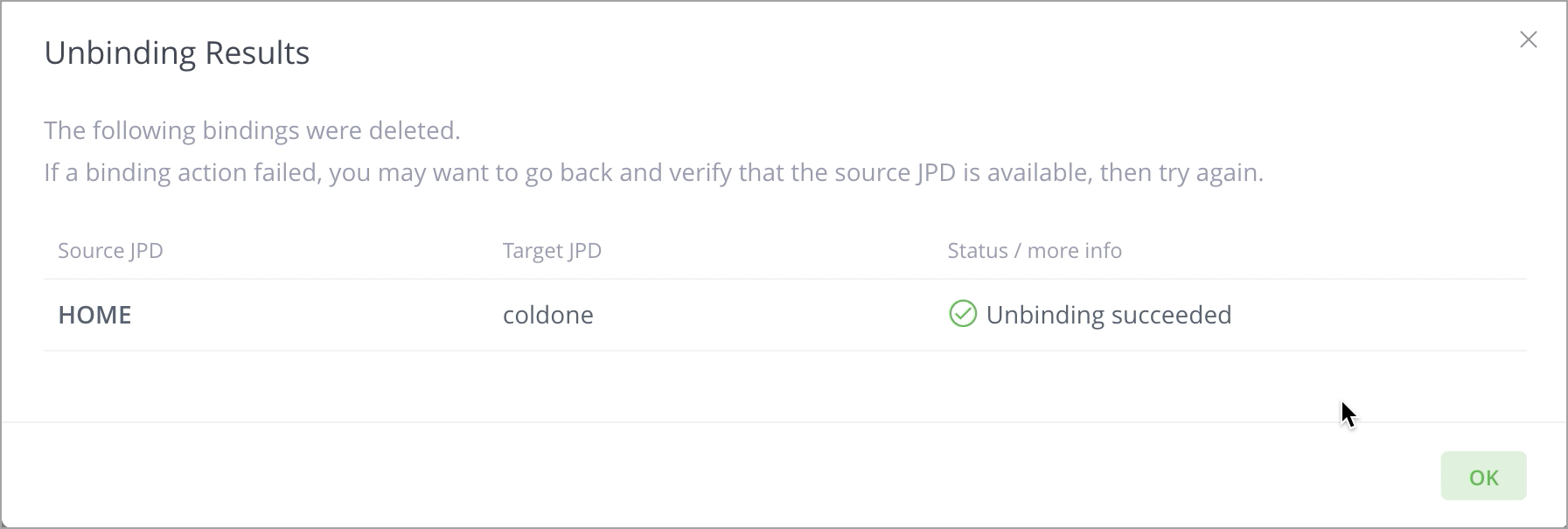

   Your action is applied and the results of the unbinding are now displayed.



Re-establishing Trust

Each connection between a Live instance and a Cold instance is bound to a namespace in the Cold instance, which is generated during the paring process. The namespace is unique and the trust is established for that specific namespace.

This namespace is required when you need to re-establish the trust between the Live and Cold instances, for example, after the token was revoked by mistake. In such scenarios:

1. Retrieve the namespace using APIs.
2. Regenerate the pairing token by providing the namespace as an argument in the POST request.

Example: curl -u admin:password -X POST https://<cold_instance_ip_address>/artifactory/api/v1/service_trust/pairing/artifactory-cold/gbbxmcuj

Where: gbbxmcuj is the namespace.

Optimize Cold Storage Performance

Cold Storage includes several properties that can be used to configure and optimize its performance.

⚠️

Warning

The list of parameters and their corresponding values that are shown below are for reference only. It is highly recommended that you do not change these values.

Live Artifactory Properties

The following properties can be configured in the Live Artifactory's $JFROG_HOME/etc/artifactory/artifactory.system.properties file.

Cold Artifactory Properties

The following properties can be configured in the Cold Artifactory System YAML.

The following property can be configured in the Cold Artifactory's $JFROG_HOME/etc/artifactory/artifactory.system.properties file.

Working with Cold Storage

📘

Subscription Information

This feature is supported on the Self-Hosted platform, with an Enterprise X or Enterprise+ license.

Now that you have set up and configured the components that comprise the Cold Storage solution - a Cold Artifactory instance connected to a binary provider and a Live Artifactory instance - you are ready to begin working with its different capabilities and features.

The Cold Storage tasks outlined in this section can be performed using the Artifactory platform UI or the Cold Storage REST APIs.

📘

Cold Artifactory Instance UI

While you can access and use the Cold Artifactory instance UI, its functionality is limited to the following:

• Browse Artifacts
• Search for Artifacts
• Create New Local Repository with Generic package type
• Add new Admin Users and Groups
• Manage Licenses
• Monitor Storage

Set Up Archive Retention Policies

Artifactory Cold Storage enables admins to create retention policies that determine which artifacts or packages need to be removed and archived from a Live Artifactory instance. When the policy is executed, artifacts or packages are moved from the Live Artifactory instance to the Cold Artifactory instance, and the corresponding binaries are stored in the storage solution connected to the Cold Artifactory.

During the archiving process, new repositories are created dynamically in the Cold instance for each repository in the Live instance.

📘

Note

Only Artifactory admins can create and run retention policies.

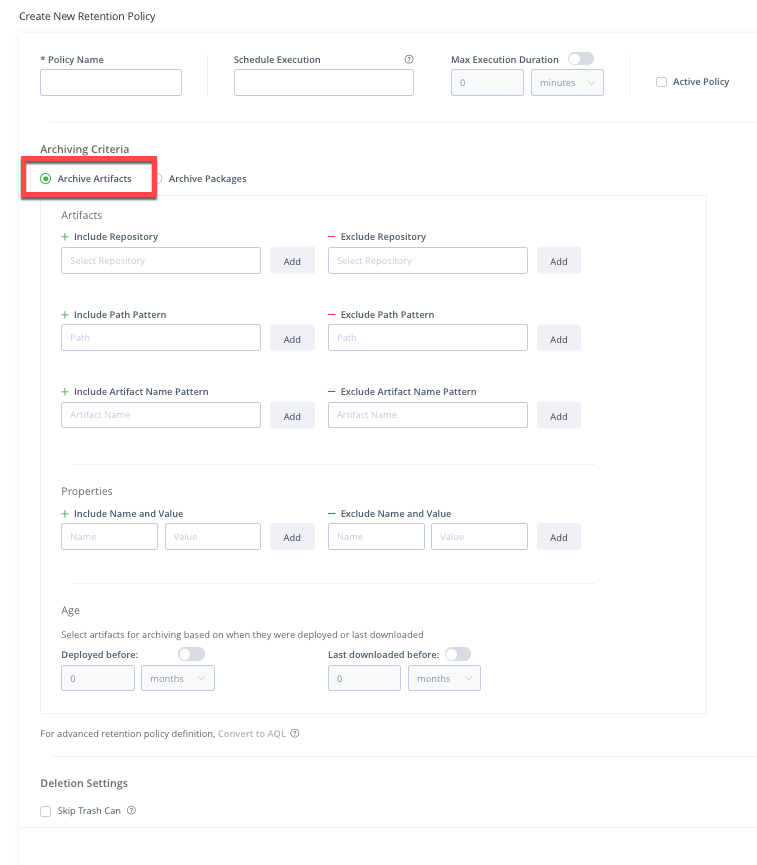

Create an Artifact Retention Policy

1. In the Live Artifactory instance, go to the Administration module, click Artifactory (Project Admin) or Artifactory Settings (Platform Admin)| Retention Policies, and then click Create Policy.

   The Create New Retention Policy page appears.



2. Under Archiving Criteria, select Archive Artifacts.

   The settings for archiving artifacts are displayed.



3. Configure the following details:

4. Click Preview to get an estimate of the number of artifacts that will be archived based on the settings selected for the policy.

5. Click Save to save the policy. The policy will run on the scheduled date and time.

   The newly created policy appears in the Retention Policies list.



Supported Package Types for Package Retention Policies

Artifactory package-level archiving currently supports the following package types:

• Conan
• Debian
• Docker
• Gems
• Generic
• Go
• Gradle
• Helm
• Maven
• Npm
• NuGet
• Pypi
• Rpm / yum

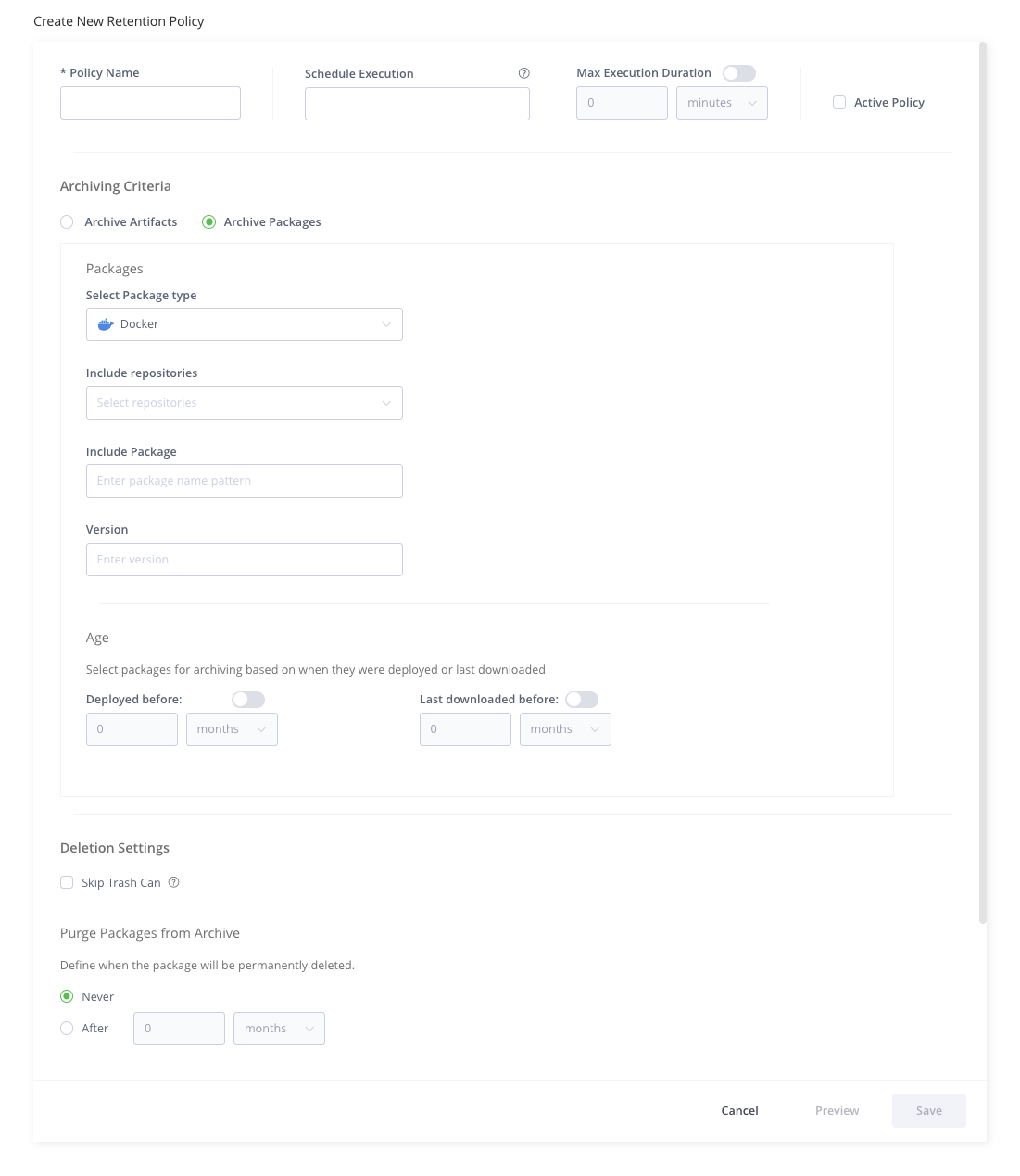

Create a Package Retention Policy

1. In the Live Artifactory instance, go to the Administration module, and select Artifactory | Retention Policies and click Create Policy.

   The Create New Retention Policy page appears.



2. Under Archiving Criteria, ensure that Archive Packages is selected and configure the following details:

3. Click Preview to get an estimate on the number of artifacts that will be archived based on the settings selected for the policy.

4. Click Save to save the policy. The policy will run on the scheduled date and time.

   The newly created policy appears in the Retention Policies list.



What Happens after the Archive Policy is Created?

After the archive policy is defined and created:

• It executes on the scheduled date and time.

  The archiving policy can also be executed manually using the Trigger button.

📘

Note

Do not run more than 10 policies at the same time as this causes performance issues.

• The system archives the artifacts or packages, along with the associated metadata, and moves it to the Cold Artifactory.
• When an item is archived, the system dynamically creates dedicated archiving repositories on the Cold instance (the new repositories are created with a randomly generated namespace prefix).
• As the archival process progresses, the system updates the logs in the Artifactory Service logs in the Live Artifactory instance. Additionally, if you have set up an email server, the admin user will receive notifications for all the completed operations.

📘

Note

Single-file package types, such as Debian, can be easily archived using simple age-based criteria in the same manner as artifacts. Regarding multiple-file package types, the current version of Artifactory supports package archiving for Docker, Maven, npm, and Gradle package types. If you want to archive other multiple-file package types, JFrog recommends using props/location-based policies on top of time-based policies. To ensure that your packages do not disappear while archiving, use the following 3-step approach:

1. Tag all the packages/images that are not in use using Property Sets in Artifactory.

   Example: 'targeted for archiving'

2. Move the tagged packages/images to a dedicated repository.

   Example: 'Ready_for_archiving'

3. Create an archiving policy based on:

   • Property. Example: 'targeted for archiving'
   • Repository. Example: 'Ready_for_archiving'
   • Age. Example: Deployed before 3 months, not downloaded during 1 last month

In future versions of Artifactory, more package types will added for archiving.

Manage Archiving Policies

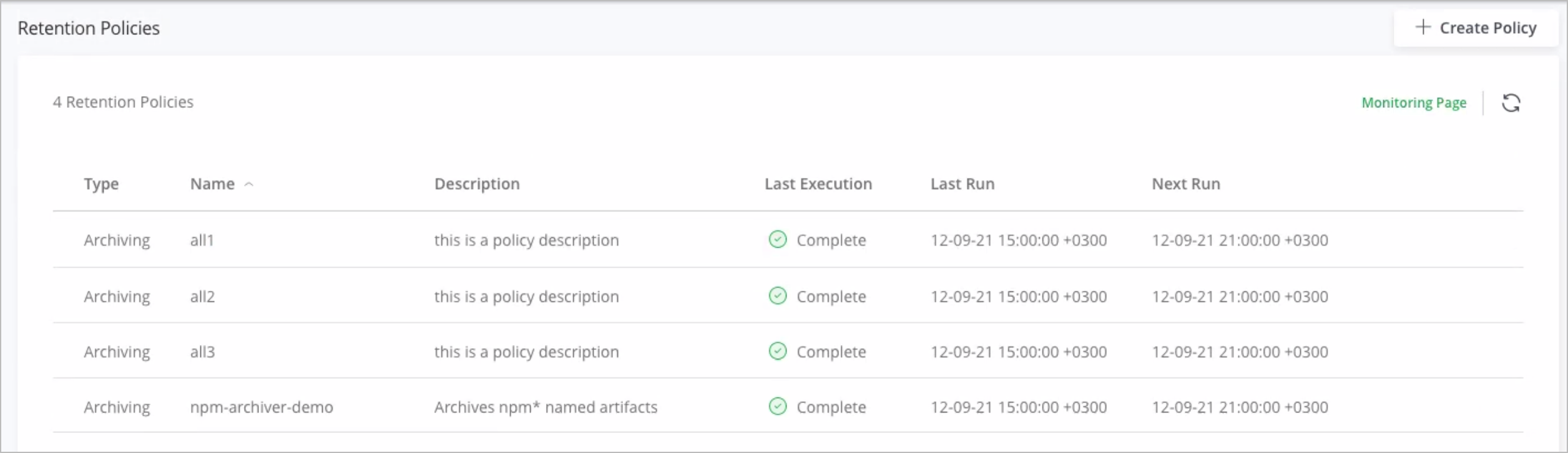

The Retention Policies page lists the name of all the retention policies, their last execution status, last run date and time, and the schedule for their next run.

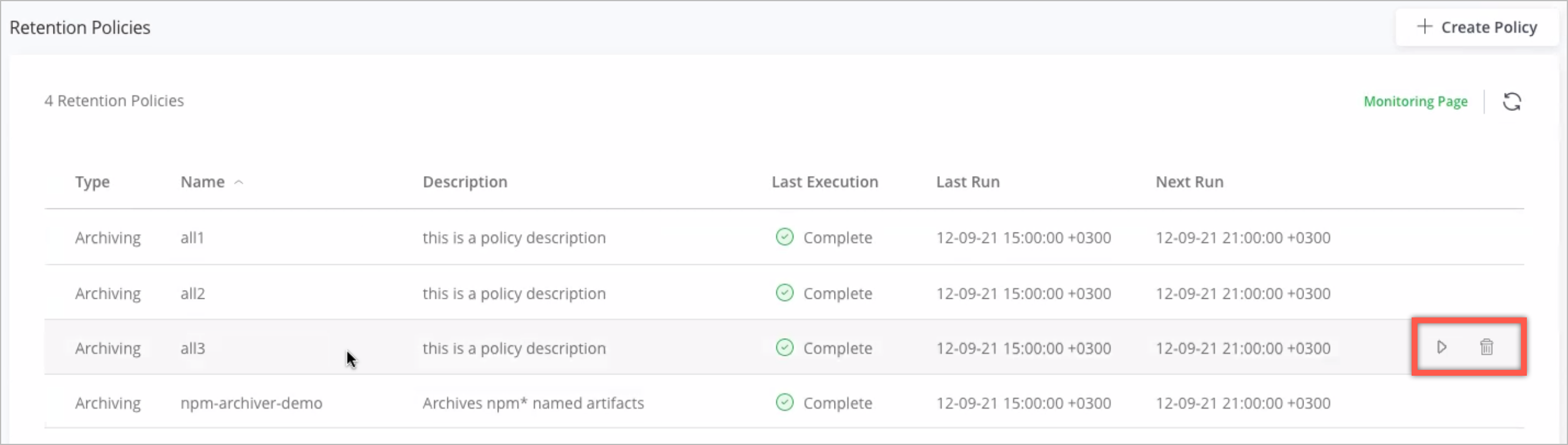

Hover over a policy and:

• Click to view and edit the policy.
• Click the Trigger icon to manually trigger the policy.
• Click the Stop icon to manually stop the execution of the policy that is in progress.
• Click the Delete icon to permanently delete the policy.

Status Icons

The Last Execution column displays the current status of each retention policy execution, which can be one of the following:

Icon	Last Execution Status	Meaning
	Pending	Pending execution - policy has never been executed.
	Triggered	User manually triggered the execution of the policy.
	Running	Execution of the policy is in progress and there are no errors.
	Running	Execution of the policy is in progress, but there are some errors. For information about these errors, see the logs.
	Complete	Execution of the policy completed successfully, without any errors.
	Complete	Execution of the policy completed, but there are some errors. For information about these errors, see the logs.
	Stopping	User manually stopped the execution of the policy and the execution is being stopped.
	Stopped	User manually stopped the execution of the policy.

Search and Restore Archived Artifacts or Packages

The Artifactory Search enables you to perform a dedicated search for artifacts or packages in the Cold instance that you wish to restore to the Live instance. The search results indicate the original repository of the artifacts or packages that are found.

After performing a search for the archived artifacts or packages, admins can provide an explicit list of artifacts or packages to be restored and trigger the restoration from the Cold instance to the Live instance. Restoration is a non-destructive process and none of the restored artifacts or packages are deleted from the Cold instance.

Search for Archived Artifacts

To search for archived artifacts:

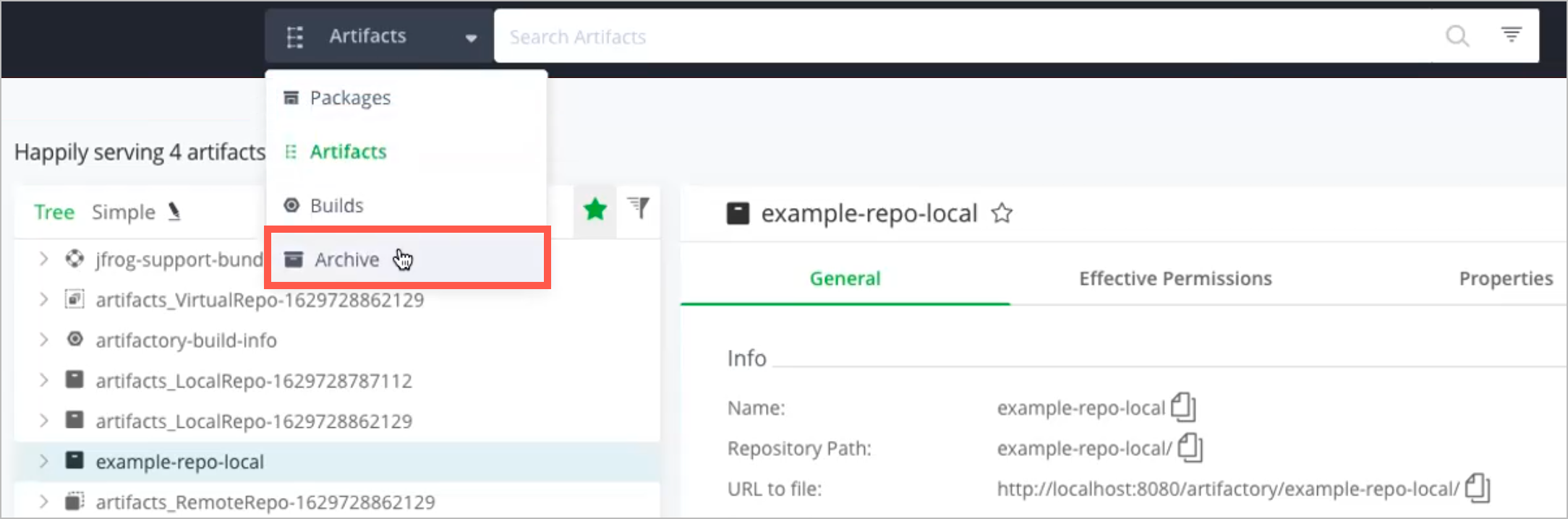

1. In the Live Artifactory instance, in the Application global search drop-down, select Archive.



2. In the search field, you can either perform a:

   • Free-text search

     or

   • Advanced Search: Click the Filter icon at the right end of the search bar, as shown below.

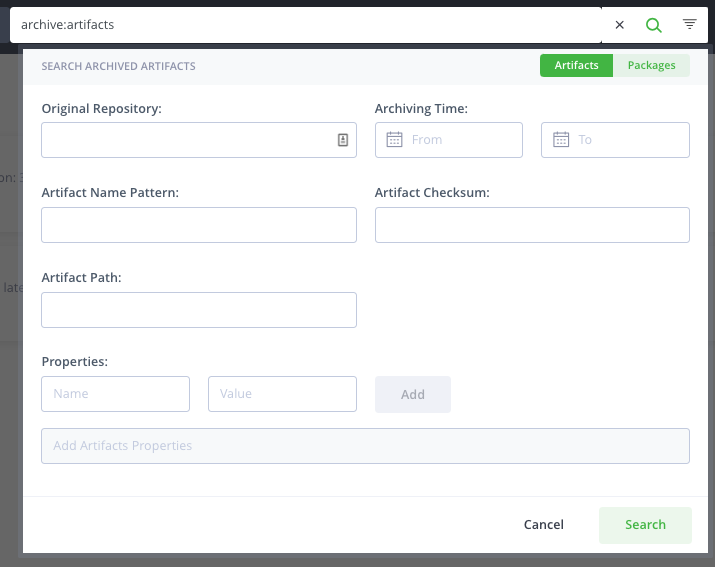

     The search drop-down window appears, as shown below:



     In the search drop down window, click Artifacts in the upper-right section of the window. The criteria for searching for archived artifacts appears, as shown below.



     Enter criteria for searching for archived artifacts, as described in the following table.

3. When you have finished entering the search criteria, click Search to display results.

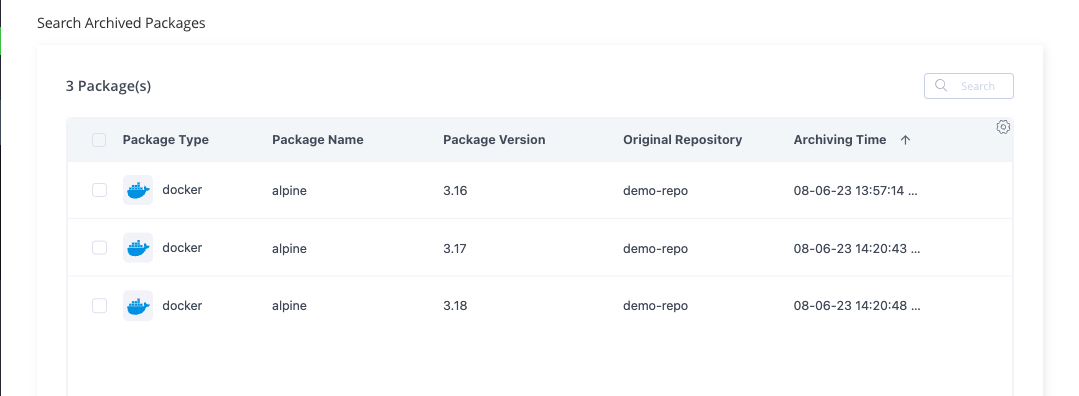

Search for Archived Packages

To search for archived packages:

1. In the Live Artifactory instance, in the Application global search drop-down, select Archive.



2. In the search field, you can either perform a:

   • Free-text search

     or

   • Advanced Search: Click the Filter icon at the right end of the search bar, as shown below.



     The search drop-down window appears, as shown below:



     In the search drop-down window, ensure that Packages is selected in the upper-right section of the window.

     Enter criteria for searching for archived packages, as described in the following table.

3. When you have finished entering the search criteria, click Search to display results.



Restore Archived Artifacts and Packages

To restore an archived artifact or package:

1. Run the search as described in Search for Archived Artifacts or Search for Archived Packages.

2. To restore a single item, hover over the item and click the Restore icon.

3. To restore multiple or all items, select the relevant items and click the main Restore icon.

   The Select Restore Destination window is displayed.



4. Based on your preference, select the following:

5. Click Restore.
6. Admins who have their email server configured will receive an e-mail notification when the restore operation is complete.

📘

Note

• Depending on the number of Artifacts being restored, the restoration process can take a few minutes to a few hours.
• If the restoration process encounters an error, the process fails and the error messages are logged accordingly.
• The default maximum number of artifacts that can be restored during a single run is 30k. However, this value can be configured to higher or lower using the retention.warm.restore.artifact.limit property in the Artifactory System Properties file. During the restore process, if the number of artifacts crosses the maximum limit, the restore process terminates after completing the restoration of artifacts to the maximum limit and the cause for termination is logged.

Monitor Archive and Restoration Operations

After initiating an archive or restore operation, you can monitor its progress and view the status of archive and restore operations based on policy name and timeframe. The last execution will always be displayed on top.

To monitor archive and restoration operations:

1. In the Administration module, select Artifactory | Cold Storage Monitoring.

   The Cold Storage Monitoring page appears.



   The Cold Storage Monitoring page provides information about the following:

2. Click Archiving/ Restoring tab to view the following details:

Work with Cold Storage Using REST APIs

Set up Retention Policies Using a REST API

Artifactory Cold Storage enables admins to create retention policies that determine which artifacts need to be removed and archived from a Live Artifactory instance. When the policy is executed, artifacts are moved from the Live Artifactory instance to the Cold Artifactory instance, and the binaries are stored in the storage solution connected to the Cold Artifactory.

To perform archiving operations, the Live instance uses standard Artifactory REST API to deploy artifacts to the Cold instance. During the archiving process, new repositories are created dynamically in the Cold instance for each repository.

📘

Note

Only Artifactory admins can create and run retention policies.

To set up a policy, use the Create an Archive Policy API. This will create a new archive policy in Artifactory using the policy configuration you set up in the API.

1. Define the archiving policy with a policy name and an optional description.

2. Use the Artifactory Query Language (AQL) to set the scope:

   • Include or exclude a repository, inner path, or artifact name (one or many)
   • Include or exclude associated properties (one or many)
   • Include an age, such as last downloaded before or deployed before (weeks, months, years)
   • If the selection criteria are not sufficient, you can also use an AQL to define specific selection criteria for archiving

3. Use a Cron Expression to set the schedule for periodically triggering the archive policy

4. Set the maximum duration (in minutes) for policy execution.

Archive Artifacts Using a REST API

After the archive policy is defined and created:

• It executes on the scheduled date and time.

  The archiving policy can also be executed manually using the Run an Archive Policy API.

📘

Note

Do not run more than 10 policies at the same time as it cause performance issues.

• The system archives the artifacts selected by the archiving policy along with the associated metadata and moves it to the Cold Artifactory.
• When an artifact is archived, the system dynamically creates dedicated archiving repositories on the Cold instance (the new repositories are created with a randomly generated namespace prefix).
• As the archival process progresses, the system updates the logs in the Artifactory service logs in the Live Artifactory instance. Additionally, if you have set up an email server, the admin user will receive notifications for all the completed operations.

Manage Archive Policies Using REST APIs

After creating an archive policy, you can use the following APIs to view, edit, and delete the policy:

• Update an Archive Policy
• Delete an Archive Policy
• Get all Archive Policies
• Get an Archive Policy
• Preview Retention Policy by Policy Key
• Preview Retention Policy by Policy Model

Running an Archive Policy – Example

The example below demonstrates how to invoke the Run Archive Policy REST API with the following assumptions:

• You are using cURL from the Unix command line, and are presently working from the home (~) directory of the admin user myUser.
• You wish to run an archive policy called myPolicy.
• You have configured an admin user named myUser, with the password myP455w0rd!.
• Your API key is ABcdEF.

To execute a call using basic authentication, you would use the following command:

curl -u admin:password -X POST https://[JFrogPlatformURL]/artifactory/api/retention/archive/policies/mPolicy/trigger

To execute a call using your API key for basic authentication, you would use the following command:

curl -u myUser:ABcdEF -X POST https://[JFrogPlatformURL]/artifactory/api/retention/archive/policies/mPolicy/trigger

To execute a call using your API key in a header, you would use the following command:

curl -H "X-JFrog-Art-Api:ABcdEF" -X POST https://[JFrogPlatformURL]/artifactory/api/retention/archive/policies/mPolicy/trigger

To execute a call using an access token for basic authentication, you would use the following command:

curl -u myUser:<Token> -X POST https://[JFrogPlatformURL]/artifactory/api/retention/archive/policies/mPolicy/trigger

To execute a call access token in a header, you would use the following command:

curl -H "Authorization: Bearer <Token>" -X POST https://[JFrogPlatformURL]/artifactory/api/retention/archive/policies/mPolicy/trigger

Search and Restore Archived Artifacts Using REST APIs

Search enables you to perform a dedicated search for artifacts in the Cold instance that you wish to restore to the Live instance. The search results indicate the origin of the resolved artifact (repo) and the availability, which depends on the type of storage used in the Cold instance.

After performing a search for the archived artifacts, admins can select the artifacts to be restored and trigger the restoration from the Cold instance to the Live instance. Restoration is a non-destructive process and none of the restored artifacts are deleted from the Cold instance.

📘

Note

You may run AQL queries only on the Item domain. Other primary domains, such as Build, Entry, Promotion, and Release are not supported.

Search Archived Artifacts Using a REST API

1. Use the Search for Archives API to search for an archived artifact.

2. Use AQL to search within an archive based on the following criteria:

   • Repository and path
   • Artifact name
   • Artifact checksum
   • Artifact properties
   • Archiving period

3. After the search is complete, select the specific artifacts from the search results that you wish to retrieve.

Restore Archived Artifacts Using a REST API

1. To restore an archived artifact, run the search as per the instructions above.
2. Use the Restore from Archive API to specify the file's explicit name and path. When retrieving, you can choose to restore to the original/fallback location or a new location. All the restored files are then uploaded to the Live instance.
3. Admins who have their email server configured will receive an e-mail notification when the restore operation is complete.

📘

Note

• Depending on the number of artifacts being restored, the restoration process can take a few minutes to a few hours.
• If the restoration process encounters an error, the process fails and the error messages are logged accordingly.
• The maximum number of artifacts that can be restored during a single run is 30k. This value can be configured using the retention.warm.restore.artifact.limit property in the Artifactory System Properties file. During the restore process, if the number of artifacts crosses the max limit, the restore process terminates after completing the restoration of 30k artifacts and the cause for termination is logged.

Monitor the Archive and Restore Processes using a REST API

After initiating an archive or restore process, you can monitor its progress and view the status of archive and restore operations based on policy name and timeframe. The last execution will always be displayed on top.

• To monitor the status of an archiving process, use the Get Archive Policy Status API.
• To monitor the status of a restoration process, use the Get Restore Process Status API.

Review Archive and Restore Logs

In addition to using the Cold Storage UI and APIs to monitor the archive and restore processes, you can also review the Artifactory service logs to learn more about the status of archive and restore operations.

Archive Logs

To find and review the archive logs, in the Artifactory service logs, search for:

• The name of the policy key.
• The retention_archive_artifact prefix, which is appended to the migration and archive operation IDs, as shown in the example below.
• The retention_archive_package prefix, which is appended to the migration and archive operation IDs, as shown in the example below.

2023-06-26T07:34:02.301Z [jfrt ] [INFO ] [37fa1a619f874a56] [ArtifactRetentionArchiveJob:57] [74a56|art-exec-37321] - Executing retention policy 'small'. Is manual true.
2023-06-26T07:34:02.327Z [jfrt ] [INFO ] [37fa1a619f874a56] [ionStatusStorageServiceImpl:99] [74a56|art-exec-37321] - About to insert new migration status record 'MigrationStatus(identifier=retention_archive_package_small_OKVTPOIGIN, started=1687764842327, finished=0, migrationInfoBlob=ArtifactRetentionArchiveInfoBlob(estimatedTotalCount=18, stoppedByUser=false))'
2023-06-26T07:34:02.328Z [jfrt ] [INFO ] [37fa1a619f874a56] [tifactRetentionServiceImpl:514] [74a56|art-exec-37321] - Executing artifact archive to cold storage. Archive policy: small with operation Id: retention_archive_package_small_OKVTPOIGIN
2023-06-26T07:34:02.334Z [jfrt ] [INFO ] [37fa1a619f874a56] [o.a.a.p.ArchiveHelper:35      ] [74a56|art-exec-37321] - 2 packages to archive for package type DOCKER with name  and version tag-1
2023-06-26T07:34:02.334Z [jfrt ] [INFO ] [37fa1a619f874a56] [kageArchivedItemsProcessor:173] [74a56|art-exec-37321] - Received 2 packages
2023-06-26T07:34:03.792Z [jfrt ] [INFO ] [cbf38e2143baab78] [r.c.t.ArchiveDeployRunnable:84] [b78|pool-73-thread-2] - docker-mix:postgress/tag-1/sha256__1921dda0e2c520146bbe1f96f73f1e270baade07da45f761ba4141b2f0c550b7 was successfully deployed to cold
2023-06-26T07:34:03.794Z [jfrt ] [INFO ] [dc147cb39b977280] [r.c.t.ArchiveDeployRunnable:84] [280|pool-73-thread-4] - docker-mix:postgress/tag-1/sha256__28bb5ab88d7aca2a970379520e082026d1062763272533bf24358cd42da78754 was successfully deployed to cold
2023-06-26T07:34:03.809Z [jfrt ] [INFO ] [f590658722ad1523] [r.c.t.ArchiveDeployRunnable:84] [523|pool-73-thread-3] - docker-mix:postgress/tag-1/sha256__254f758dbb83e424d684bd8be194099edb1ed4137152cab7cfdc486484d3adc7 was successfully deployed to cold
2023-06-26T07:34:09.302Z [jfrt ] [INFO ] [37fa1a619f874a56] [c.u.ArtifactRetentionUtils:644] [74a56|art-exec-37321] - docker-mix:postgress/tag-1/manifest.json was successfully undeployed from warm
2023-06-26T07:34:09.320Z [jfrt ] [INFO ] [37fa1a619f874a56] [c.u.ArtifactRetentionUtils:644] [74a56|art-exec-37321] - docker-mix:postgress/tag-1/sha256__0543b0f5d286859c23fd17cd78d02387a2eafb60662601af8fa9a3b6e050f334 was successfully undeployed from warm
2023-06-26T07:34:09.335Z [jfrt ] [INFO ] [37fa1a619f874a56] [c.u.ArtifactRetentionUtils:644] [74a56|art-exec-37321] - docker-mix:postgress/tag-1/sha256__1921dda0e2c520146bbe1f96f73f1e270baade07da45f761ba4141b2f0c550b7 was successfully undeployed from warm
2023-06-26T07:34:09.558Z [jfrt ] [INFO ] [37fa1a619f874a56] [onStatusStorageServiceImpl:137] [74a56|art-exec-37321] - Migration for 'retention_archive_package_small_OKVTPOIGIN' has finished.
2023-06-26T07:34:09.561Z [jfrt ] [INFO ] [37fa1a619f874a56] [.r.c.s.ArchiveBaseStrategy:136] [74a56|art-exec-37321] - Archive operation to cold storage ended. Operation Id: retention_archive_package_small_OKVTPOIGIN. Started at: Mon Jun 26 07:34:02 GMT 2023. Ended at: Mon Jun 26 07:34:09 GMT 2023. Total items processed: 20. Success percentage: 100%.

Restore Logs

To find and review the restore logs, in the Artifactory service logs, search for:

• The restore operation I.
• The retention_restore_artifact_ prefix, which is appended to the migration and restore operation IDs, as shown in the example below.
• The retention_restore_package_ prefix, which is appended to the migration and restore operation IDs.

2023-06-27T06:45:57.523Z [jfrt ] [INFO ] [3a80716725fdf1b8] [ionStatusStorageServiceImpl:99] [27.0.0.1-8081-exec-3] - About to insert new migration status record 'MigrationStatus(identifier=retention_restore_package_URPXF4HBCL, started=1687848357523, finished=0, migrationInfoBlob=ArtifactRetentionRestoreInfoBlob(totalCount=1, restoreToOriginal=true, fallbackDestinationPath=docker-restore, centralDestinationPath=, initializationState=IN_PROGRESS))'

2023-06-27T06:45:57.542Z [jfrt ] [INFO ] [3a80716725fdf1b8] [ifactRetentionServiceImpl:1145] [27.0.0.1-8081-exec-3] - Executing restore process from cold storage. Operation Id: retention_restore_package_URPXF4HBCL for 1 items

2023-06-27T06:47:03.243Z [jfrt ] [INFO ] [c8dea5f7a720715c] [tifactRetentionServiceImpl:734] [20715c|art-exec-6799] - Pull items for restore operation with ID: retention_restore_package_URPXF4HBCL and destination info: ArtifactRetentionRestoreDestinationInfo(restoreToOriginal=true, fallbackDestinationPath=docker-restore, centralDestinationPath=)

2023-06-27T06:49:03.277Z [jfrt ] [INFO ] [4dfee8247cc56f5a] [t.PullRestoredItemRunnable:129] [f5a|pool-48-thread-1] - Item restore-in-transit:vglwruop/retention_restore_package_URPXF4HBCL/alpine-local-50000/docker-alpine-pipe-tag-10/alpine/pipe/tag-10/sha256__63b65145d645c1250c391b2d16ebe53b3747c295ca8ba2fcb6b0cf064a4dc21c will be restored to its original repository: alpine-local-50000:

2023-06-27T06:49:03.279Z [jfrt ] [INFO ] [c4aad1bed3a10bdd] [t.PullRestoredItemRunnable:129] [bdd|pool-48-thread-2] - Item restore-in-transit:vglwruop/retention_restore_package_URPXF4HBCL/alpine-local-50000/docker-alpine-pipe-tag-10/alpine/pipe/tag-10/sha256__b2aa39c304c27b96c1fef0c06bee651ac9241d49c4fe34381cab8453f9a89c7d will be restored to its original repository: alpine-local-50000:

2023-06-27T06:49:03.332Z [jfrt ] [INFO ] [c4aad1bed3a10bdd] [o.a.e.UploadServiceImpl:518   ] [bdd|pool-48-thread-2] - Deploy to 'alpine-local-50000:alpine/pipe/tag-10/sha256__b2aa39c304c27b96c1fef0c06bee651ac9241d49c4fe34381cab8453f9a89c7d' Content-Length: 82 (estimation) artificial: false

2023-06-27T06:49:03.332Z [jfrt ] [INFO ] [4dfee8247cc56f5a] [o.a.e.UploadServiceImpl:518   ] [f5a|pool-48-thread-1] - Deploy to 'alpine-local-50000:alpine/pipe/tag-10/sha256__63b65145d645c1250c391b2d16ebe53b3747c295ca8ba2fcb6b0cf064a4dc21c' Content-Length: 79 (estimation) artificial: false

2023-06-27T06:51:03.217Z [jfrt ] [INFO ] [1ede2f44ddc9f2af] [t.PullRestoredItemRunnable:129] [2af|pool-48-thread-3] - Item restore-in-transit:vglwruop/retention_restore_package_URPXF4HBCL/alpine-local-50000/docker-alpine-pipe-tag-10/alpine/pipe/tag-10/manifest.json will be restored to its original repository: alpine-local-50000:
retention_restore_package_URPXF4HBCL and destination info: ArtifactRetentionRestoreDestinationInfo(restoreToOriginal=true, fallbackDestinationPath=docker-restore, centralDestinationPath=)

2023-06-27T06:51:03.220Z [jfrt ] [INFO ] [1ede2f44ddc9f2af] [o.a.e.UploadServiceImpl:518   ] [2af|pool-48-thread-3] - Deploy to 'alpine-local-50000:alpine/pipe/tag-10/manifest.json' Content-Length: 232 (estimation) artificial: false

2023-06-27T06:53:03.224Z [jfrt ] [INFO ] [712134ab9166d58d] [onStatusStorageServiceImpl:137] [66d58d|art-exec-6959] - Migration for 'retention_restore_package_URPXF4HBCL' has finished.

2023-06-27T06:53:03.268Z [jfrt ] [WARN ] [712134ab9166d58d] [c.u.ArtifactRetentionUtils:174] [66d58d|art-exec-6959] - Illegal number of total artifacts: 1

2023-06-27T06:53:03.268Z [jfrt ] [INFO ] [712134ab9166d58d] [s.PullRestoredItemsStrategy:99] [66d58d|art-exec-6959] - Restore operation from cold storage ended. Operation Id: retention_restore_package_URPXF4HBCL. Started at: Tue Jun 27 06:45:57 GMT 2023. Ended at: Tue Jun 27 06:53:03 GMT 2023. Total items processed: 1. Success percentage: 0%.[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-enforcer-plugin/3.0.0-M3/maven-enforcer-plugin-3.0.0-M3.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-enforcer-plugin/3.0.0-M3/maven-enforcer-plugin-3.0.0-M3.pom (7.3 kB at 179 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/enforcer/enforcer/3.0.0-M3/enforcer-3.0.0-M3.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/enforcer/enforcer/3.0.0-M3/enforcer-3.0.0-M3.pom (7.8 kB at 181 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/maven-parent/33/maven-parent-33.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/maven-parent/33/maven-parent-33.pom (45 kB at 740 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/apache/21/apache-21.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/apache/21/apache-21.pom (17 kB at 303 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-enforcer-plugin/3.0.0-M3/maven-enforcer-plugin-3.0.0-M3.jar
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-enforcer-plugin/3.0.0-M3/maven-enforcer-plugin-3.0.0-M3.jar (27 kB at 551 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-source-plugin/3.2.1/maven-source-plugin-3.2.1.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-source-plugin/3.2.1/maven-source-plugin-3.2.1.pom (6.9 kB at 147 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-plugins/33/maven-plugins-33.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-plugins/33/maven-plugins-33.pom (11 kB at 261 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-source-plugin/3.2.1/maven-source-plugin-3.2.1.jar
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-source-plugin/3.2.1/maven-source-plugin-3.2.1.jar (32 kB at 510 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-clean-plugin/3.1.0/maven-clean-plugin-3.1.0.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-clean-plugin/3.1.0/maven-clean-plugin-3.1.0.pom (5.2 kB at 50 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-plugins/31/maven-plugins-31.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-plugins/31/maven-plugins-31.pom (10 kB at 65 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/maven-parent/31/maven-parent-31.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/maven-parent/31/maven-parent-31.pom (44 kB at 1.3 MB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/apache/19/apache-19.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/apache/19/apache-19.pom (16 kB at 318 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-clean-plugin/3.1.0/maven-clean-plugin-3.1.0.jar
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-clean-plugin/3.1.0/maven-clean-plugin-3.1.0.jar (30 kB at 663 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-checkstyle-plugin/3.1.1/maven-checkstyle-plugin-3.1.1.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-checkstyle-plugin/3.1.1/maven-checkstyle-plugin-3.1.1.pom (14 kB at 356 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-plugins/34/maven-plugins-34.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-plugins/34/maven-plugins-34.pom (11 kB at 243 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/maven-parent/34/maven-parent-34.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/maven-parent/34/maven-parent-34.pom (44 kB at 932 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/apache/23/apache-23.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/apache/23/apache-23.pom (18 kB at 509 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-checkstyle-plugin/3.1.1/maven-checkstyle-plugin-3.1.1.jar
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-checkstyle-plugin/3.1.1/maven-checkstyle-plugin-3.1.1.jar (109 kB at 1.3 MB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-resources-plugin/3.2.0/maven-resources-plugin-3.2.0.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-resources-plugin/3.2.0/maven-resources-plugin-3.2.0.pom (8.1 kB at 202 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-resources-plugin/3.2.0/maven-resources-plugin-3.2.0.jar
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-resources-plugin/3.2.0/maven-resources-plugin-3.2.0.jar (33 kB at 804 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-compiler-plugin/3.8.1/maven-compiler-plugin-3.8.1.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-compiler-plugin/3.8.1/maven-compiler-plugin-3.8.1.pom (12 kB at 255 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-compiler-plugin/3.8.1/maven-compiler-plugin-3.8.1.jar
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-compiler-plugin/3.8.1/maven-compiler-plugin-3.8.1.jar (62 kB at 1.4 MB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-dependency-plugin/3.0.2/maven-dependency-plugin-3.0.2.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-dependency-plugin/3.0.2/maven-dependency-plugin-3.0.2.pom (14 kB at 212 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-plugins/30/maven-plugins-30.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-plugins/30/maven-plugins-30.pom (10 kB at 268 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/maven-parent/30/maven-parent-30.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/maven-parent/30/maven-parent-30.pom (42 kB at 1.1 MB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/apache/18/apache-18.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/apache/18/apache-18.pom (16 kB at 126 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-dependency-plugin/3.0.2/maven-dependency-plugin-3.0.2.jar
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-dependency-plugin/3.0.2/maven-dependency-plugin-3.0.2.jar (166 kB at 3.3 MB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-surefire-plugin/2.22.0/maven-surefire-plugin-2.22.0.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-surefire-plugin/2.22.0/maven-surefire-plugin-2.22.0.pom (5.0 kB at 133 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/surefire/surefire/2.22.0/surefire-2.22.0.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/surefire/surefire/2.22.0/surefire-2.22.0.pom (27 kB at 536 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-surefire-plugin/2.22.0/maven-surefire-plugin-2.22.0.jar
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-surefire-plugin/2.22.0/maven-surefire-plugin-2.22.0.jar (41 kB at 714 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-jar-plugin/3.2.0/maven-jar-plugin-3.2.0.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-jar-plugin/3.2.0/maven-jar-plugin-3.2.0.pom (7.3 kB at 148 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-jar-plugin/3.2.0/maven-jar-plugin-3.2.0.jar
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-jar-plugin/3.2.0/maven-jar-plugin-3.2.0.jar (29 kB at 467 kB/s)
[INFO] Downloading from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-install-plugin/2.5.2/maven-install-plugin-2.5.2.pom
[INFO] Downloaded from central: https://entplus.jfrog.io/artifactory/plugins-releases/org/apache/maven/plugins/maven-install-plugin/2.5.2/maven-install-plugin-2.5.2.pom (6.4 kB at 221 kB/s)

Cold Storage Limitations, Known Issues and Workarounds

These are some of the limitations that you may encounter when using Cold Storage and any possible workarounds.
