Swift Repositories

Swift is a general-purpose programming language built using a modern approach to safety, performance, and software design patterns. The Swift Package Manager is a tool for managing the distribution of Swift code. It’s integrated with the Swift build system to automate the process of downloading, compiling, and linking dependencies. The tool compiles and links Swift packages, managing dependencies, versioning, and supporting flexible distribution and collaboration models. For more information, see Swift documentation and Swift Package Manager.

Artifactory fully supports Swift repositories, including the following capabilities:

• Robust Metadata Capabilities: Calculate metadata for Swift packages hosted in Artifactory's local repositories, and validate remote Swift repository metadata.
• Unified Repository Management: Consolidate all your Swift repositories in Artifactory as a single source of truth. Set up secure local repositories, access cached versions of remote registries including the public Tuist Swift Package Registry, and create a single access point for all sources with virtual repositories.
• Support for Swift Package Manager: Natively use the Swift command line tool to deploy, remove, and manage packages in Artifactory.

Get Started with Swift

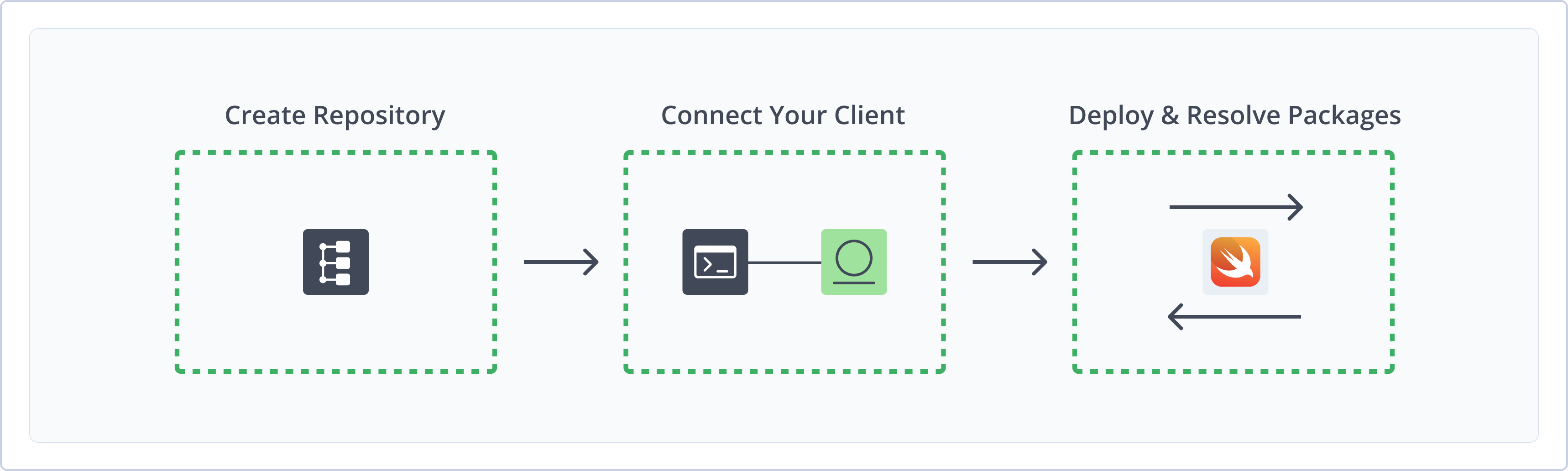

To get started working with Swift, complete the following main steps:

1. Create a Swift Repository
2. Connect Swift to Artifactory
3. Deploy and Resolve Swift packages

Create a Swift Repository

This topic describes how to create a Swift repository. This is required before publishing and installing Swift packages. There are three primary types of repositories:

• Local repositories: Store and share first- and second-party packages with your organization

• Remote repositories: Download packages from any remote location, including external package registries or other Artifactory instances

• Virtual repositories: Aggregate remote and local repositories, enabling your organization to scale by providing a single URL that provides access to multiple repositories and types

For more information on JFrog repositories, see Repository Management.

Prerequisite: You need Admin or Project Admin permissions in Artifactory to create a repository. If you don't have Admin permissions, the option will not be available.

To create a Swift repository:

1. In the Administration tab, click Repositories > Create a Repository.



2. Select the type of repository you want to create: local, remote, or virtual.

3. Select the Swift package type.

4. Configure the required fields for the repository:

   • For local repositories, in the Repository Key field, enter a meaningful name for the repository. For example, swift-local. For more information on local repositories and their settings, see Local Repositories.

   • For remote repositories, verify the Repository URL and update as needed. For more information on remote repositories and their settings, see Remote Repositories.

     Swift remote repositories connect to registries that use the Swift registry protocol, including the public Tuist Swift Package Registry at https://tuist.dev/api/registry/swift. URLs like https://swiftpackageregistry.com are HTML catalogs that do not host any packages, but point to GitHub repositories that host packages.

   • For virtual repositories, select one or more local or remote repository types to include in the virtual repository. For more information on virtual repositories and their settings, see Virtual Repositories.

5. Click Create Repository. The repository is created and the Repositories page is displayed.

Connect Swift to Artifactory

Configure your Swift client to connect to your Artifactory repositories. You can configure repositories per Swift project or globally.

Swift uses HTTPS by default. If you need to connect using HTTP, open the .swiftpm/configuration/registries.json file and update the scheme in the "url" field to http.

Prerequisite: Before connecting your Swift client to Artifactory, you must have an existing Swift repository in Artifactory. For more information, see Create a Swift Repository.

To connect the Swift client to Artifactory:

1. From your Swift project directory, run the following command to add the Artifactory repository to your Swift configuration:

   Shell

   swift package-registry set "https://<JFROG_PLATFORM_URL>/artifactory/api/swift/<REPO_NAME>"

   ✅

   Tip

   To configure the registry for all Swift projects, add the --global flag before the registry URL. You can run the --global command from any directory.

   Where:

   • <JFROG_PLATFORM_URL>: The URL of your JFrog Platform
   • <REPO_NAME>: The name of the target repository in Artifactory

   For example:

   Shell

   swift package-registry set "https://company.jfrog.io/artifactory/api/swift/swift-virtual"

   The .swiftpm/configuration/registries.json file is created.

2. Add the following snippet with your Artifactory authentication information to your ~/.netrc file:

   Text

   machine <JFROG_PLATFORM_URL> login <USERNAME> password <AUTH_TOKEN>

   Where:

   • <JFROG_PLATFORM_URL>: The base URL of your JFrog Platform
   • <USERNAME>: Your Artifactory username
   • <AUTH_TOKEN>: Your Artifactory identity token

   For example:

   Text

   machine company.jfrog.io login jeffry password B7r9P2tLqGvXzWcM5jN3yHkF6sD8aA1vS4uK0eI2oZp7xTqWcE5rVbN1mKjHgF

   📘

   Note

   You can also use JFrog Set Me Up to copy the snippet populated with your token and environment. For more information, see Use Artifactory Set Me Up for Configuring Package Manager Clients.




Next steps:

• Deploy Swift Packages
• Resolve Swift Packages

Connect to a Specific Swift Repository

Connect directly to a specific Swift repository in Artifactory and bypass any project-specific or global configurations.

To connect to a specific Swift repository:

1. Run the following command:

   Shell

   swift package-registry login https://<JFROG_PLATFORM_URL>/artifactory/api/swift/<REPO_NAME> \
       --username <USERNAME> \
       --password <AUTH>

   Where:

   • <JFROG_PLATFORM_URL>: The URL of your JFrog Platform
   • <REPO_NAME>: The name of the target Artifactory repository
   • <USERNAME>: Your Artifactory username
   • <AUTH>: Your Artifactory identity token or password. For more information about using a password securely, see Centrally Secure Passwords

   For example:

   Shell

   swift package-registry login https://company.jfrog.io/artifactory/api/swift/swift-virtual \
       --username jeffry \
       --password B7r9P2tLqGvXzWcM5jN3yHkF6sD8aA1vS4uK0eI2oZp7xTqWcE5rVbN1mKjHgF

Deploy Swift Packages

Deploy Swift packages to an Artifactory Swift repository after you connect your client.

To deploy Swift packages:

1. From the root directory of the package, run this command to create a source archive for the working tree:

   Shell

   swift package archive-source

2. Publish the archive using one of the following commands, based on your version of the Swift client:

   • Version 5.9 or later:

     Shell

     swift package-registry publish <SCOPE>.<NAME> <VERSION>

     Where:

     • <SCOPE>: The owner or namespace of the package, usually the scope of the source code repository URL
     • <NAME>: The name of the project as defined in the Package.swift file
     • <VERSION>: The version of the package, usually corresponding with a tag in the source code repository

     For example:

     Shell

     swift package-registry publish aurora-fi.aurora-auth-ios 2.1.4

   • Version 5.8 or earlier:

     Shell

     curl -X PUT -u<USERNAME>:<AUTH> \
     -H "Accept: application/vnd.swift.registry.v1+json" \
     -F source-archive="@<SOURCE_ARCHIVE_PATH>" \
     https://<JFROG_PLATFORM_URL>/artifactory/api/swift/<REPO_NAME>/<SCOPE>/<NAME>/<VERSION>

     Where:

     • <USERNAME>: Your Artifactory username
     • <AUTH>: Your Artifactory identity token or secure password
     • <SOURCE_ARCHIVE_PATH>: The local file path to the source archive for the package
     • <JFROG_PLATFORM_URL>: The URL of your JFrog Platform
     • <REPO_NAME>: The name of the target repository in Artifactory
     • <SCOPE>: The owner or namespace of the package, usually the scope of the source code repository URL
     • <NAME>: The name of the project as defined in the Package.swift file
     • <VERSION>: The version of the package, usually corresponding with a tag in the source code repository

     For example:

     Shell

     curl -X PUT -ujeffry:B7r9P2tLqGvXzWcM5jN3yHkF6sD8aA1vS4uK0eI2oZp7xTqWcE5rVbN1mKjHgF \
     -H "Accept: application/vnd.swift.registry.v1+json" \
     -F source-archive="@/opt/build/agent/work/aurora-auth-ios-2.1.4.zip" \
     https://company.jfrog.io/artifactory/api/swift/swift-releases/aurora-fi/aurora-auth-ios/2.1.4

Resolve Swift Packages

Resolve Swift package dependencies from an Artifactory Swift repository using the Swift Package Manager client.

To resolve Swift packages:

1. List all dependencies in the Package.swift file for the package you want to resolve:

   Swift

   dependencies: [
   .package(id: "<SCOPE>.<NAME>", from:"<VERSION>")
   ]

   Where:

   • <SCOPE>: The owner or namespace of the package, usually the scope of the source code repository URL
   • <NAME>: The name of the project as defined in the Package.swift file
   • <VERSION>: The version of the package, usually corresponding with a tag in the source code repository

   For example:

   Swift

   dependencies: [
       .package(id: "apple.swift-nio", from: "2.65.0"),
       .package(id: "vapor.fluent", from: "4.8.0"),
       .package(id: "pointfreeco.swift-composable-architecture", from: "1.10.0"),
       .package(id: "google.swift-protobuf", from: "1.27.0")
   ]

2. Run one of the following commands based on the repository type you configured in Connect Swift to Artifactory:

   • Local repositories:

     Shell

     swift package resolve

   • Remote and virtual repositories:

     Shell

     swift package --replace-scm-with-registry resolve

     Starting with Swift 5.9, Swift Package Manager defaults to resolving package dependencies from Git. The --replace-scm-with-registry flag directs Swift Package Manager to resolve dependencies from the configured registry instead of Git. This flag is required when resolving packages from remote or virtual repositories that proxy a Swift registry, such as the Tuist registry.

   📘

   Note

   Xcode does not automatically replace source control packages with their registry equivalents. Direct registry dependencies declared with .package(id:from:) resolve through the registry, but transitive dependencies declared as url: are still resolved from Git. To resolve through Artifactory, manually remove the source control dependency and add the equivalent registry dependency in Package.swift. The --replace-scm-with-registry flag applies to the SwiftPM CLI only, not to Xcode.

Additional Swift Information

The following pages provide additional information about using Swift with Artifactory:

• Re-Index a Swift Repository
• Swift Repository Structure

Re-Index a Swift Repository

You can trigger an asynchronous re-indexing of a local Swift repository either through the UI or using the REST API.

This reindexes the git index and, as a result, will also index the remote repositories.

Prerequisite: You need Admin or Project Admin permissions in Artifactory to re-index a repository.

To re-index a Swift repository through the UI:

1. In the Platform module, go to Artifactory > Artifacts.
2. Find your repository in the repository tree. For more information, see Search for Artifacts on SaaS.
3. Right-click the repository and select Recalculate Index.

Re-index a Swift repository through the REST API:

You can also reindex Swift repositories using the Calculate Swift Index REST API.

Swift Repository Structure

The Swift package structure is as follows.

`├── Package.swift ├── README.md ├── Sources`

`│ └─ Hello`  `│ └── hello.swift └── Tests`  `└─ HelloTests └── helloTests.swift └─ LinuxMain.swift`

Swift Deployment Structure

All deployments of Swift packages into Artifactory can be deployed under the following structures:

• <SCOPE>/<NAME>/<NAME>-<VERSION>.zip structure.
• <SCOPE>/<NAME>/<VERSION>: Based on the following Swift Publish API.

Packages must be deployed according to this structure, or they won't be included in the index file.

Swift Limitations in Artifactory

The following are the limitations of Swift in Artifactory:

• Supported versions: Using Swift with JFrog Artifactory requires Swift version 5.7 and above, and JFrog Artifactory 7.41.4 and above.

• Authentication support: Swift 5.8 and above requires at least JFrog Artifactory 7.55.1 for proper authentication support.

• Xcode registry resolution: Xcode does not automatically replace source control (url:) package dependencies with registry (id:) equivalents. You must manually update dependencies in Package.swift to use registry IDs where you want Artifactory resolution.

• Deployment structure: Swift packages must be deployed in the following structure to be indexed properly in Artifactory:

  • <SCOPE>/<NAME>/<NAME>-<VERSION>.zip
  • <SCOPE>/<NAME>/<VERSION>

Frequently Asked Questions

This section provides answers to frequently asked questions about using Swift repositories with JFrog Artifactory.
